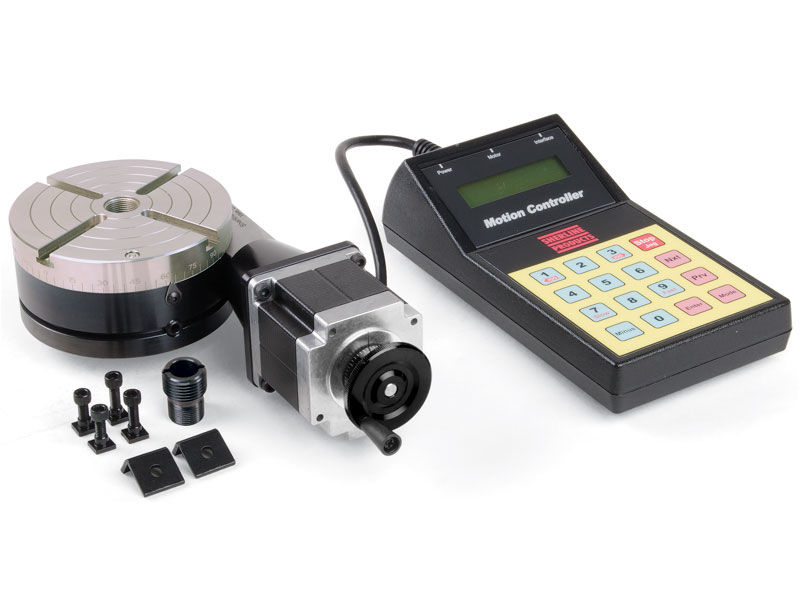

Nickel-Teflon Coated CNC-Rotary Table Indexer
Chuck shown for reference only (not included)
Product Description
About the CNC Rotary Table with 15/32″ Through Hole
This is a modification of our CNC 4″ Rotary Table with an Indexing Controller. This modification came about after requests from our laser engraving customers. They wanted a rotary table that had a larger through hole to which you could mount our chucks.
This version of the Sherline rotary table has a Nickel-Teflon plating on it because it was designed to be used in an every-day production environment. This gives the table a rust resistant surface that is hard and has added lubrication qualities.
The table is 2″ high and 4″ (100mm) in diameter. The main components have been machined from solid bar stock steel, and the complete unit weighs seven pounds. The table has been engraved with a laser, giving sharp and precise lines every 5°, numbered every 15°. These lines are calibrated with the 72-tooth worm gear that is driven by the handwheel or stepper motor. The handwheel is divided into 50 parts, making each line on the handwheel 1/10°. This allows a circle to be divided into 3600 increments without interpolation. Seventy-two revolutions of the handwheel rotate the table one revolution.
About the Controller Power Supply Current
The controller power supply is 110-240VAC compatible. It automatically switches from 110V to 240V for countries with 220-240 volt electrical current. The original power supply that we offered with this product was 110 VAC only.
Features include:
- The through hole on this rotary table is 15/32″ (.469″)
- The chuck adapter has a 3/4-16 thread for the chuck and a 5/8-24 thread for the rotary table
- There is a .6485″ c’bore at the entrance of the 5/8-24 thread which is used to locate the adapter concentric to the rotary table (See Figure 1 below)
NOTE: In order to use this rotary table with our Tilting Angle Table (P/N 3750) you will need to drill out the 10-32 center hole to 1/2″ diameter. This will allow the maximum diameter of stock to feed through the rotary table (See Figure 2 below).
-
- Figure 1: Chuck adapter and rotary table through hole
-
- Figure 2: Rotary table layout
Click on images for a larger view.
Using the rotary table with the limit switches on the TAT
NOTE: For instructions on using the rotary table with the limit switches on the TAT, click on the Instructions tab above and download the PDF MASSO Rotary Table Limit Switch Interference on the Tilting Angle Table.
|
|
Always wear safety glasses when operating machine tools. |
|
Download PDF 8700 Instructions
|
Download PDF MASSO Rotary Table Limit Switch Interference on the Tilting Angle Table Instructions
|
|
Download PDF Troubleshooting CNC Rotary Table Problems
|
Download PDF CNC Rotary Table Maintenance Instructions
|
Video examples of different weights and uses for our rotary tables.
Laser Engraving with Sherline “Pin Jaws”
Sherline Rotary Laser Scanning Table
Rotary Table Weight Capacity Specifications |
|
|---|---|
| Horizontal orientation | 50 lbs. |
| Vertical orientation | 30 lbs. |
| Vertical rotational torque | 6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12″ away from the center of the rotary table) |
| Mechanical backlash | 0.2° or less |
Rotary Indexer Specifications |
|
| Table Size | 4″ diameter by 2″ height |
| Part mounting Provisions | Center thread including chuck adapter and 4 T-slots |
| Rotation Speed | 1°/ sec to 50°/sec maximum (programmable in 1″ increment) |
| Resolution | 28,800 steps per revolution (±.006° per step) |
| Backlash Compensation | Programmable |
| Stepper Motor | 120 oz-in, 2 Amp, NEMA 23 Frame size, 400 steps per revolution |
| Power Supply Transformer | Input: 120 VAC 60 Hz 38 W; Output: 24V, 1000 mA |
*NOTE: If you need a metric equivalent for the 10-32 thread, you can use a 5 x .8mm thread. If the fit is too tight, you can retap the 10-32 holes with a 5 x .8mm tap, and the new threads should be fine.
| Part No. | Description | Quantity |
|---|---|---|
| 10930 | 3/8″ Bearing | 2 |
| 30561 | 10-32 T-nut | 2 |
| 3058 | 4-Jaw Hold Down Set Assembly | 1 |
| 37097 | Rotary Table Chuck Adapter, 5/8-24 to 3/4-16 with 15/32″ Through-hole | 1 |
| 37100 | Rotary Table Base | 1 |
| 371102 | Nickel-Plated Rotary Table Top | 1 |
| 37121 | CNC Rotary Table Worm Housing (Not sold separately) | N/A |
| 37131 | CNC Rotary Table Worm Shaft (Not sold separately) | N/A |
| 37122 | CNC Rotary Table Worm Housing Assembly (P/Ns 37121, 37131) | 1 |
| 37123 | CNC Rotary Table Coupling | 1 |
| 37124 | CNC Rotary Table Coupling Adapter | 1 |
| 37150 | Oil Plug | 1 |
| 37160 | Preload Nut | 1 |
| 37170 | Lock Pin | 1 |
| 37200 | Button Head Screw, 10-32 X 3/8″ | 2 |
| 37210 | Hold Down Tab | 1 |
| 37220 | Button Head Screw, 6-32 X 1/4″ | 1 |
| 40050 | Handwheel Assembly | 1 |
| 40330 | 10-32 X 5/8″ SHCS | 2 |
| 40420 | Headstock Bearing | 1 |
| 40510 | SHC Screw, 10-32 X 3/8″ | 1 |
| 40520 | Cup Point Set Screw, 10-32 X 3/16″ | 4 |
| 40540 | Cone Point Set Screw, 5/16-18 X 3/4″ | 1 |
| 40660 | Washer | 1 |
| 40670 | 10-32 X 1/2″ SHCS | 2 |
| 50120 | Pointer | 1 |
| 12050 | SHC Screw, 8-32 X 3/8″ | 4 |
| 87510 | CNC Rotary Table Stepper Motor Mount | 1 |
| 67127 | Stepper Motor w/Flat & Plug Assembly, 2 Amp, 100-oz., NEMA #23 frame-size | 1 |
| 67126 | High-Torque Stepper Motor (Optional upgrade), 2 Amp, 191-oz., NEMA #23 frame-size | 1 |
| 87041 | 120 VAC power supply (24 VDC, 1 amp output) | 1 |
| 87100 | Control unit with keypad/electronics | 1 |
| 87250 | Motor-to-keypad 6′ extension cable | 1 |
| 87350 | Remote (limit) switch/daisy-chain 1/2 cable | 1 |
Click the P/N below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
8730 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
