14″ 8-Direction XY Base
Product Description
If you already own a vertical milling column for use with your lathe, but feel a sturdier base with a larger work area would be to your advantage, you may purchase the base of any of our vertical mills as an XY base. Your older vertical milling column can be returned to the factory to be re-machined and used with an XY base rather than purchasing the entire vertical milling machine. (Call for price.) Vertical milling columns made after 1995 do not need to be modified. This combination saves you the amount of money included in the cost of the vertical mill for the column but gives you the same machine less headstock and motor/speed control. XY bases have also found their way into the industrial market and are used in various manufacturing setups. Each of the three mills is available as an XY base.

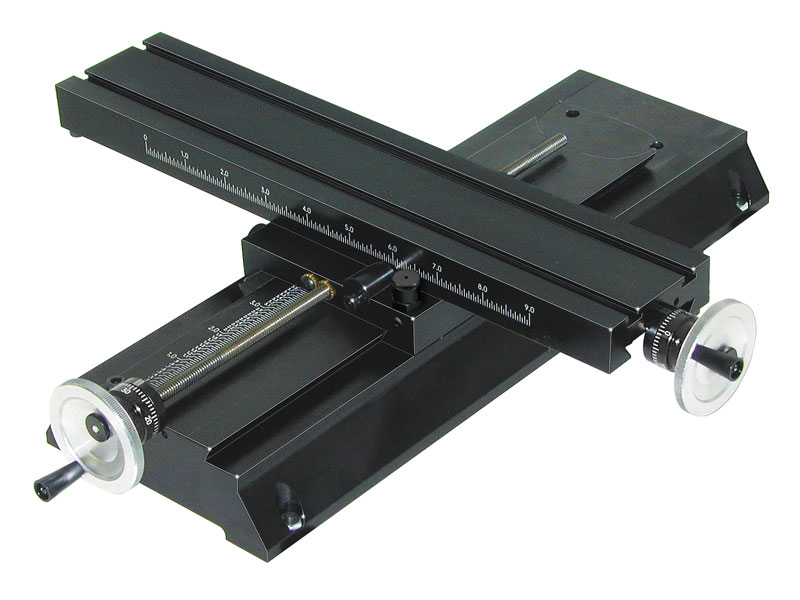

The 5600/5601 Deluxe Mill XY base is the same base used in our 2000-series mill. It has a 14″ base with adjustable “zero” handwheels, and laser engraved table and base.
Travel: X=8.65″ (220 mm), Y=7.0″ (178 mm)
|
|
Always wear safety glasses when operating machine tools. |
XY Base Comparison Chart
| P/N (inch/metric) | NAME | WEIGHT | TRAVEL |
|---|---|---|---|
| 5200/5210 | Mill XY Base (10″ base, plain handwheels) | 19 lbs. | X=9.0″ (228 mm), Y=3.0″ (76 mm) |
| 5220/5225 | Mill XY Base (10″ base w/ adjustable handwheels) | 19 lbs. | X=9.0″ (228 mm), Y=3.0″ (76 mm) |
| 5200-CNC/5210-CNC | Mill XY Base (10″ base) with stepper motor mounts ready for CNC | 20 lbs. | X=9.0″ (228 mm), Y=3.0″ (76 mm) |
| 5401/5411 | Mill XY Base (Deluxe 12″ base) | 21 lbs. | X=9.0″ (228 mm), Y=5.0″ (127 mm) |
| 5401-CNC/5411-CNC | Mill XY Base (12″ base) with stepper motor mounts ready for CNC | 22 lbs. | X=9.0″ (228 mm), Y=5.0″ (127 mm) |
| 5600/5610 | Mill XY Base (Deluxe 14″ 2000 base) | 22 lbs. | X=9.0″ (228 mm), Y=7.0″ (178 mm) |
| 5600-CNC/5610-CNC | Mill XY Base (14″ 2000 base) with stepper motor mounts ready for CNC | 23 lbs. | X=9.0″ (228 mm), Y=7.0″ (178 mm) |
| 5801/5811 | Mill XY Base (NexGen 18″ 5800 base) | 27 lbs. | X=13.65″ (347 mm), Y=11.0″ (279 mm) |
| 5801-CNC/5811-CNC | Mill XY Base (18″ 5800 base) with stepper motor mounts ready for CNC | 28 lbs. | X=13.65″ (347 mm), Y=11.0″ (279 mm) |
| 3420 | 2″ Zero Handwheel-Y-axis Assembly (P/N 3429 metric) |
|---|---|
| 3428 | 2″ Zero Handwheel-X-Axis Assembly (P/N 3430 metric) |
| 40280 | Thrust Collar Assembly |
| 40510 | (3) 10-32 X 3/8″ Skt Hd Cap Screw |
| 40520 | (2) 10-32 X 3/16 Cup Pt Set Screw |
| 40530 | (2) 5-40 X 3/8″ Skt Hd Cap Screw |
| 40560 | Hex Key 3/16″ |
| 40600 | 10-32 X 1/4″ Flat Pt Set Screw |
| 40690 | 10-32 X 3/4″ Skt Hd Cap Screw |
| 40760 | 10-32 X 5/8″ Thumb Screw |
| 40820 | (2) Gib Lock |
| 40890 | Slide Screw Insert (P/N 41890 metric) |
| 40980 | (2) Crosslide Gib (Instructions) |
| 45070 | Lock (Teflon) |
| 50130 | Back Lash Nut, X-axis Assembly (P/N 51130 metric) |
| 50140 | Back Lash Nut, Y-axis Assembly (P/N 51140 metric) |
| 50150 | (2) Anti-Backlash Lock (10/98) |
| 50170 | Lead Screw, X-axis Assembly (P/N 51170 metric) |
| 50190 | (2) Lock, X-axis Assembly |
| 50200 | Nut, Y-axis (P/N 51200 metric) |
| 50211 | (2) 8-32 X 1/4″ Button Skt Screw |
| 50280 | Thrust Collar (Mill) |
| 50911 | Mill Saddle W/Oiler Assembly |
| 54180 | Deluxe Mill Table Assembly (P/N 54190 metric) |
| 56010 | Mill 2000 Base (14″) Assembly (P/N 56020 metric) |
| 56160 | Mill 2000 Y-axis Screw Assembly (P/N 56150 metric) |
| 56240 | (2) 1/4-20 X 1-1/2″ Skt Hd Cap Screw |
| 54180 | Deluxe Mill Table Assembly |
