87648

87648-2

Image shown is a representation only. Actual product may vary.

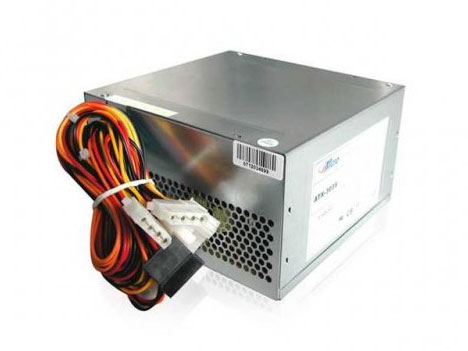

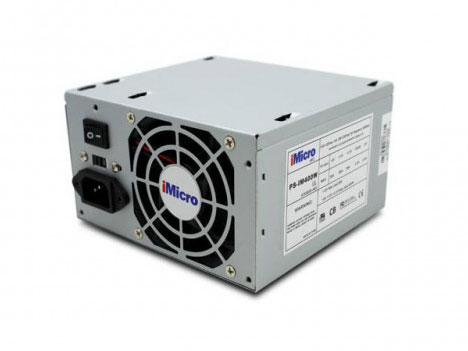

Power Supply for PC

-

SKU: 87648 Category:
  • Features:
    • Comply with Intel ATX12V V1.3
    • 20/24pin connector for M/B
    • Support Intel Pentium 4 & AMD CPU
    • MTBF >50,000 hours at 25°C
  • Input:
    • Input Voltage: 115VAC (90~132VAC); 230VAC (180~264VAC)
    • Input Frequency: 47 ~ 63 Hz
    • Inrush Current: <70A at 230VAC cold start at 25°C
  • Output:
    • Max Output Power: 400 W
    • Efficiency: Min 68% at full load 115VAC/60Hz
    • OVP: +3.3V, +5V, +12V
    • SCP: All output to GND
    • +3.3V @ 18A; +5V @ 20A; +12V @ 22A; -12V @ 0.5A; +5VSB @ 2.0A
  • Turn on Time: Max 500ms
  • Hold up Time: Min 16ms
  • Connectors: 1x 20/24pin Main Power Connector, 1x 4pin CPU Connector, 2x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
  • Dimensions: 150 x 85 x 140 mm
