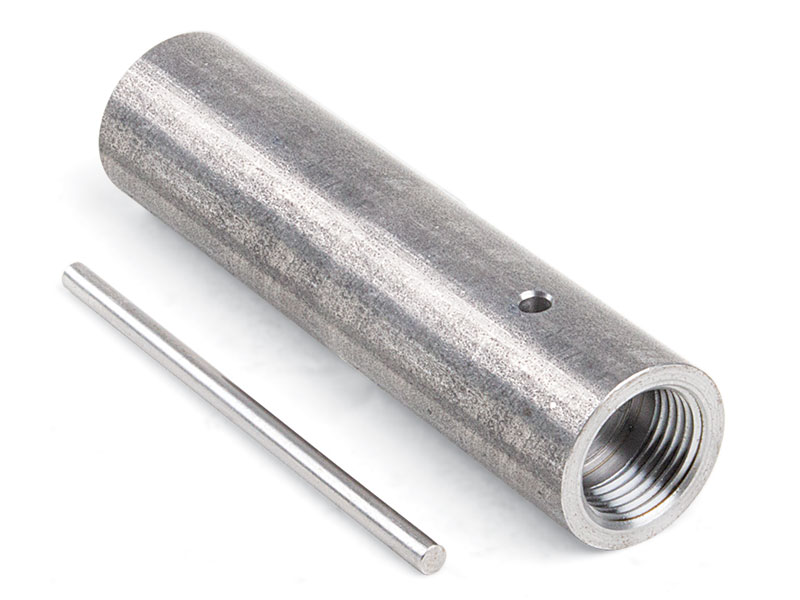

4″ End Mill Holder Style Fixture


Includes Tommy bar

SKU: 3083 Categories: ,

Product Description

About the Sherline End Mill Holder Style Fixture

This blank fixture can be screwed directly onto the 3/4-16 thread of the Sherline spindle and then turned or milled to hold a part of your choice. It is made from a 1″ diameter 12L14 steel billet cut 4″ long. The pre-cut thread assures accurate re-seating on the spindle thread each time the fixture is used.

How to Use this Fixture

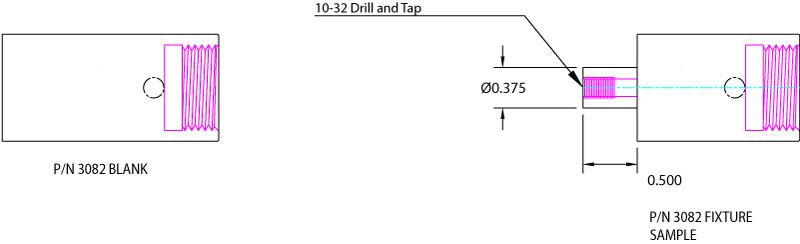

The drawing below will give some ideas of how to use the end mill holder style fixture.

Click on the image for a larger view.

Making a Collet Closer Ball Carrier with Sherline CNC Machines

Part No. Description Quantity
37096 4″ blank fixture 1
40580 Spindle bar 1
