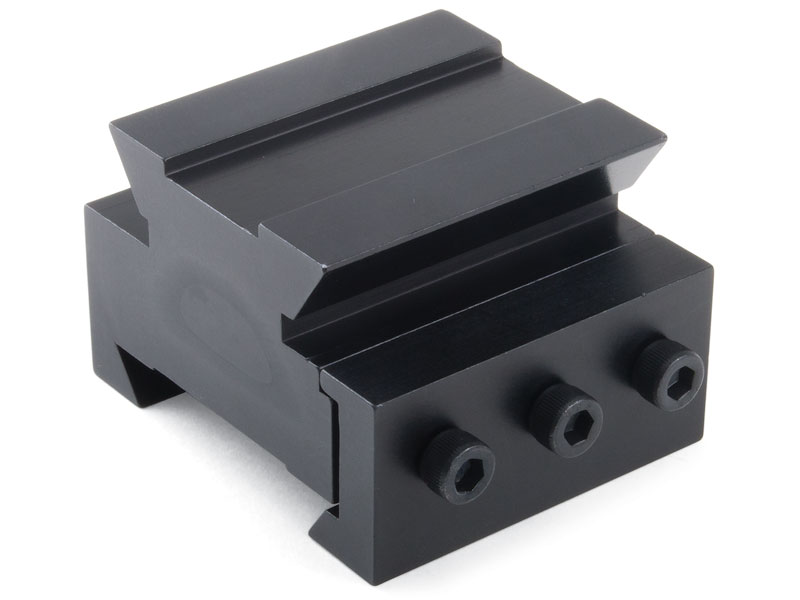

Tailstock Riser Block
For those customers interested in turning larger diameters between centers, the Tailstock Riser Block will raise the tailstock to correspond with the riser block kit, allowing you an additional 1.235″ (31.37 mm) of clearance. The Tailstock Riser Block has a two-part dovetailed base to allow for easy installation and secure locking to the bed.
-
| Riser Block Body Material | 6061 T6 Aluminum |
|---|---|
| Riser Block Body Coating | Black Anodized |
