Quick-Change Tool Post Body (assembly)
-
Does not include any of the tool holders
Product Description
About the Quick-Change Tool Post

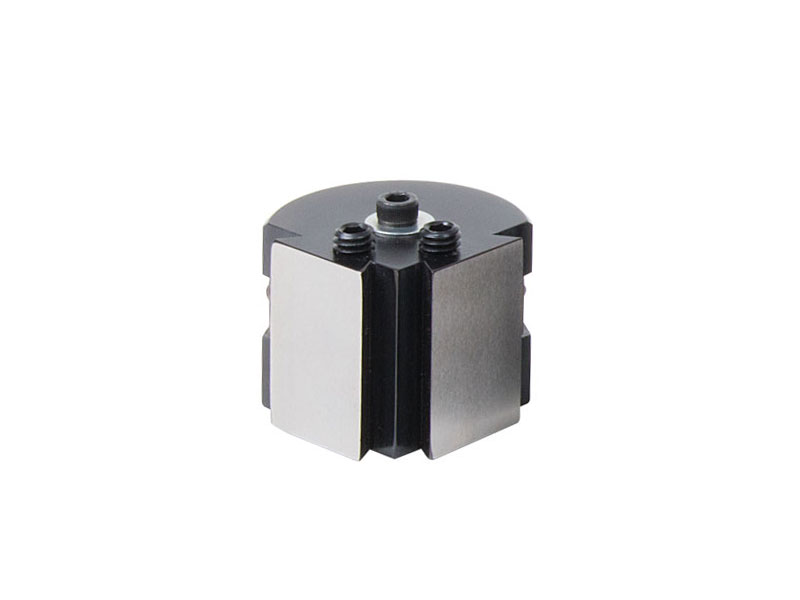

The Quick-Change Tool Post uses a dovetail design to locate removable holders in a fashion similar to that used in production machine shops. The case hardened steel tool post has two machined dovetails to accept three tool holders.
The Quick-Change Tool Post assembly includes a hold-down clamp, T-nuts, and screws. This assembly does not include the Quick-Change Tool Holders.
|
|
Always wear safety glasses when operating machine tools. |
|
Download PDF 2250 Instructions
|
| Tool Post Body Material | Steel |
|---|---|
| Body Coating | Black Oxide |
Quick-Change Tool Post Body (assembly) |
||
|---|---|---|
| Part No. | Description | Quantity |
| 22510 | Quick-Change Tool Post Body | 1 |
| 22520 | Left-hand Cam | 1 |
| 22530 | Right-Hand Cam | 1 |
| 22570 | 4-40 x 1/4″ SHCS | 2 |
| 22620 | Cam Spring Pin | 2 |
| 22630 | .120″ x 7/16″ Spring | 2 |
| 30561 | 10-32 T-Nut | 1 |
| 35580 | Hold Down Clamp | 1 |
| 40250 | Tall T-Nuts | 1 |
| 40330 | 10-32 x 5/8″ SHCS | 1 |
| 40340 | 10-32 x 1″ SHCS | 1 |
| 40540 | 5/16″ x 3/4″ Cone Point Set Screw | 2 |
| 40660 | #10 3/16″ Washer | 1 |
