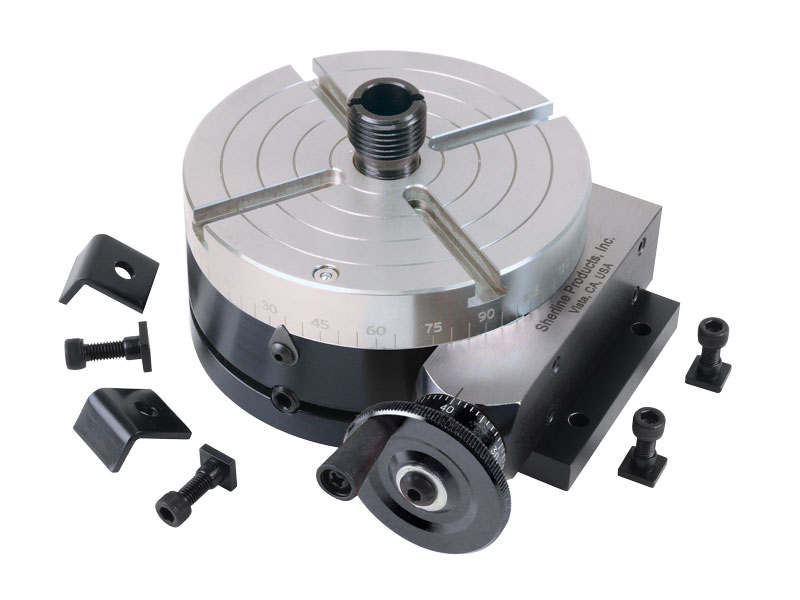

Nickel-Teflon Coated Manual Rotary Table
Chuck shown for reference only (not included)
Product Description
About the Rotary Table with 15/32″ Through Hole
This is a modification of our 4″ Manual Rotary Table. This modification came about after requests from our laser engraving customers. They wanted a rotary table that had a larger through-hole to which they could mount our chucks.
This version of the Sherline rotary table has a Nickel-Teflon plating on it because it was designed to be used in an everyday production environment. This gives the table a rust-resistant surface that is hard and has added lubrication qualities.
The table is 2″ high and 4″ (100mm) in diameter. The main components have been machined from solid bar stock steel, and the complete unit weighs seven pounds. The table has been engraved with a laser, giving sharp and precise lines every 5°, numbered every 15°. These lines are calibrated with the 72-tooth worm gear that is driven by the handwheel or stepper motor. The handwheel is divided into 50 parts, making each line on the handwheel 1/10°. This allows a circle to be divided into 3600 increments without interpolation. Seventy-two revolutions of the handwheel rotate the table one revolution.
For all other details and specifications of this rotary table, see the instructions tab above for P/N 3700 or P/N 3700CNC.
Converting a Manual Table to CNC-Ready
NOTE: You can have your manual rotary table upgraded to CNC-ready, but this is done as a factory-only replacement. You will need to ship your manual rotary table back to our factory for the conversion.
CLICK HERE for details on the conversion process.
Features include:
- The through-hole on this rotary table is 15/32″ (.469″)
- The chuck adapter has a 3/4-16 thread for the chuck and a 5/8-24 thread for the rotary table
- There is a .6485″ c’bore at the entrance of the 5/8-24 thread, which is used to locate the adapter concentric to the rotary table (See Figure 1 below)
NOTE: In order to use this rotary table with our Tilting Angle Table (P/N 3750) you will need to drill out the 10-32 center hole to 1/2″ diameter. This will allow the maximum diameter of stock to feed through the rotary table (See Figure 2 below).
-

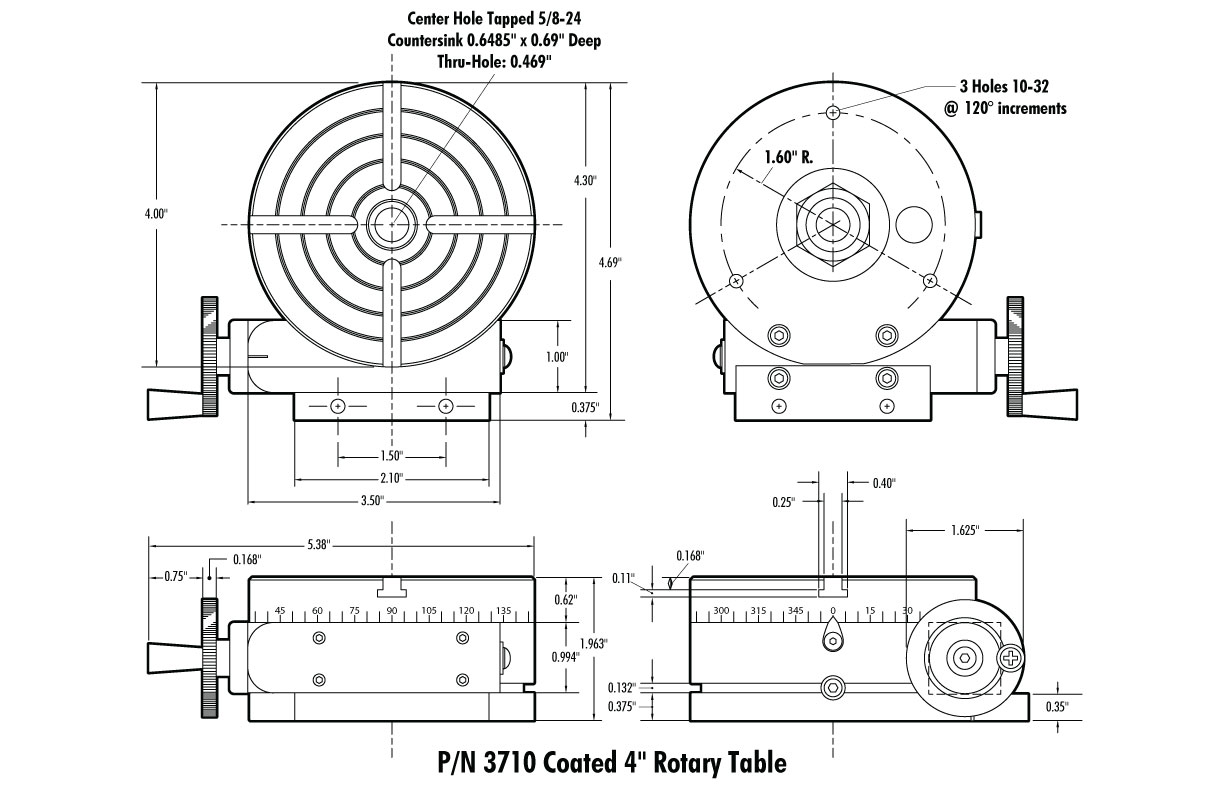

- Figure 1: Chuck adapter and rotary table through hole
-
- Figure 2: Rotary table layout
Click on images for a larger view.
|
|
Always wear safety glasses when operating machine tools. |
|
Download PDF 3700 Instructions
|
Video examples of different weights and uses for our rotary tables.
Laser Engraving with Sherline “Pin Jaws”
Rotary Table Weight Capacity Specifications |
|
|---|---|
| Horizontal orientation | 50 lbs. |
| Vertical orientation | 30 lbs. |
| Vertical rotational torque | 6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12″ away from the center of the rotary table) |
| Mechanical backlash | 0.2° or less |
*NOTE: If you need a metric equivalent for the 10-32 thread, you can use a 5 x .8mm thread. If the fit is too tight, you can retap the 10-32 holes with a 5 x .8mm tap, and the new threads should be fine.
| Part No. | Description | Quantity |
|---|---|---|
| 10930 | 3/8″ Bearing | 2 |
| 30561 | 10-32 T-nut | 2 |
| 3058 | 4-Jaw Hold Down Set Assembly | 1 |
| 37097 | Rotary Table Chuck Adapter, 5/8-24 to 3/4-16 with 15/32″ Through-hole | 1 |
| 37100 | Rotary Table Base | 1 |
| 371102 | Nickel-Plated Rotary Table Top | 1 |
| 37120 | Worm Housing (Not sold separately) | 1 |
| 37130 | Worm Gear (Not sold separately) | 1 |
| 37150 | Oil Plug | 1 |
| 37160 | Preload Nut | 1 |
| 37170 | Lock Pin | 1 |
| 37200 | Button Head Screw, 10-32 X 3/8″ | 2 |
| 37210 | Hold Down Tab | 1 |
| 37220 | Button Head Screw, 6-32 X 1/4″ | 1 |
| 40050 | Handwheel Assembly | 1 |
| 40330 | 10-32 X 5/8″ SHCS | 2 |
| 40420 | Headstock Bearing | 1 |
| 40510 | SHC Screw, 10-32 X 3/8″ | 1 |
| 40520 | Cup Point Set Screw, 10-32 X 3/16″ | 4 |
| 40540 | Cone Point Set Screw, 5/16-18 X 3/4″ | 1 |
| 40660 | Washer | 1 |
| 40670 | 10-32 X 1/2″ SHCS | 2 |
| 50120 | Pointer | 1 |
