Knurling Tool Holder

SKU: 3004 Category:

Product Description

Sherline’s knurling system can add that “professional” look to your parts. Knurls are embossed into the surface of a part rather than cut. Straight knurls are often used on the end of a shaft that is to be pressed into another part. Straight or diamond knurl patterns are used to provide better grip on handwheels and thumbscrews.

knurled_knob

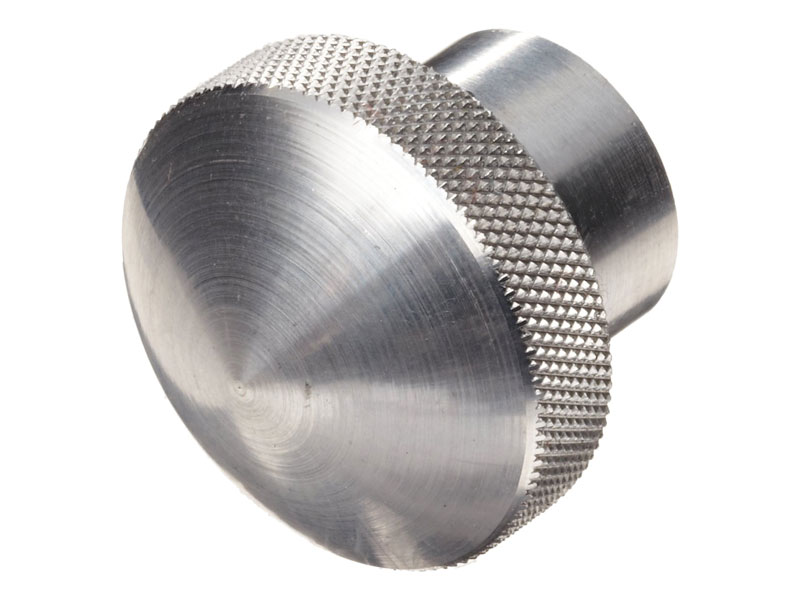

The typical diamond knurl finish; straight knurls also available.

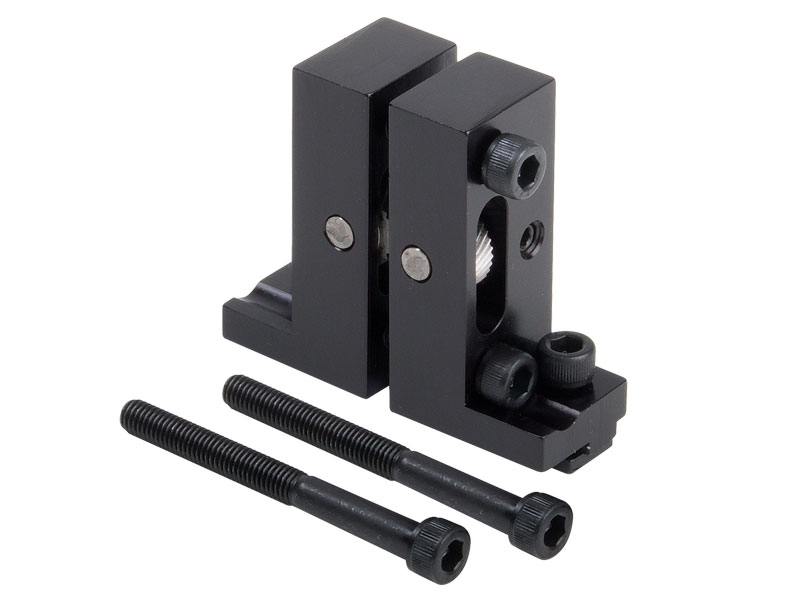

The tool will handle diameters up to 1″ (25 mm) and consists of a right and left side that evenly tighten down on your part, while it is turned in the lathe, creating a knurled pattern. The holder is supplied with one set of spiral knurls that creates a diamond pattern.

Other size knurls for diamond or straight patterns are also available.

NOTE: The knurling tool was not designed for use with riser blocks.



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 3004 Instructions

Instructions PDF Download

Body Material 6061 T6 Aluminum
Body Coating Black Anodized
Knurling Wheel Material High Speed Steel
Max Diameter Knurling Capacity 1″ (25mm)
30561 (2) 10-32 Tee Nut
36010 Knurling Holder – Right
36020 Knurling Holder – Left
36030 (4) .381 x .030 Washer (ID .190″)
36040 (2) 3/16″ x 3/4″ Dowel Pin
3606 90-D 25TPI Spiral Knurls
40510 (2) 10-32 x 3/8″ SKT HD Cap Screw
40520 (2) 10-32 x 3/16″ Cup Point Set Screw
40730 (2) 10-32 x 2″ SKT HD Cap Screw
40710 (2) 10-32 x 1-1/4″ SKT HD Cap Screw
Spiral KnurlsSKUPriceDetails
90° 20TPI Spiral Knurl Pair3605$26.25More Info
90° 25TPI Spiral Knurl Pair3606$26.25More Info
90° 30TPI Spiral Knurl Pair3607$26.25More Info
90° 35TPI Spiral Knurl Pair3608$26.25More Info
90° 40TPI Spiral Knurl Pair3609$26.25More Info
70° 50TPI Spiral Knurl Pair3610$26.25More Info
70° 80TPI Spiral Knurl Pair3611$26.25More Info
Straight KnurlsSKUPriceDetails
90° 16TPI Straight Knurl Pair3612$26.25More Info
90° 20TPI Straight Knurl Pair3613$26.25More Info
90° 25TPI Straight Knurl Pair3614$26.25More Info
90° 30TPI Straight Knurl Pair3615$26.25More Info
90° 32TPI Straight Knurl Pair3616$26.25More Info
90° 35TPI Straight Knurl Pair3617$26.25More Info
90° 40TPI Straight Knurl Pair3618$26.25More Info
90° 41TPI Straight Knurl Pair3619$26.25More Info
90° 47TPI Straight Knurl Pair3620$26.25More Info
70° 35TPI Straight Knurl Pair3621$26.25More Info
70° 50TPI Straight Knurl Pair3622$26.25More Info
70° 53TPI Straight Knurl Pair3623$26.25More Info
70° 60TPI Straight Knurl Pair3624$26.25More Info
70° 70TPI Straight Knurl Pair3625$26.25More Info
70° 80TPI Straight Knurl Pair3626$26.25More Info
