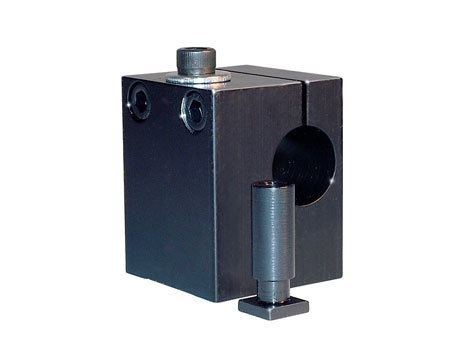

Micro Grinder Tool Post

SKU: 8976 Category:

Product Description

The grinder tool posts are used to hold the high-speed grinder on your lathe for polishing, or fine grinding jobs. The grinder tool post holds the grinder body on center with your lathe. You can also use the riser grinder tool post when the lathe riser blocks are in place.

8976_8900
Image shows the grinder tool post in place holding the High-Speed Engraving Spindle (sold separately.)



About the High-Speed Engraving Spindle…

In most machining conditions it is not necessary to achieve tool speeds faster than the 10,000 RPM that can be produced with the standard DC motor spindle with optional high-speed pulley set. However, for engraving and other applications where extremely small, pointed tools are used, higher speeds are required for good finishes and acceptable feed rates. The High-Speed Engraving spindle is capable of speeds up to 54,000 RPM and will hold 1/8″ diameter cutting tools in its collet spindle. Three carbide tools with various cutter face angles are provided with your engraving head along with 7 grinding tips.

The high-speed spindle fits into the hole in the toolpost and a screw is tightened laterally to secure it in place. Do not over tighten this or the hold-down screw that secures the toolpost to the table. The grinder can be used for putting a fine finish on hard parts, but it does not have the high torque needed to remove larger quantities of metal.

See more on the high-speed grinder for more details on its use.

Precaution!
A carbide tool is being rotated at extremely high speeds. Should it shatter, pieces are flung outward at high speed. While eye protection is always recommended for any machining operation, good eye protection is absolutely imperative when using high-speed tools like this.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Tool Post Body Material Aluminum
Body Coating Black Anodized
Body Dimensions (H x W X D) 1.5″ x 1.25″ x 1.25″
Hole Dimension .614-.615
Part No. Description Quantity
89760 Grinder Tool Post Body 1
40250 Tall T-Nut 1
40340 10-32 x 1″ SHCS 2
40660 #10 Washer 3/16 1
40710 10-32 x 1-1/4″ SHCS 1
