Lathe 8-direction Milling Column Upgrade

Clear selection
SKU: N/A Category:

Product Description

About the Lathe 8-direction Milling Column Upgrade

If you already have a vertical milling column for your lathe and you want to upgrade it to include multi-direction machining capabilities, you can purchase this lathe vertical milling upgrade. Your existing column bed is removed from the old rectangular column base and reinstalled on the column ram of the new, round column base.

It is also available with the mill column bed included as P/N 3580.

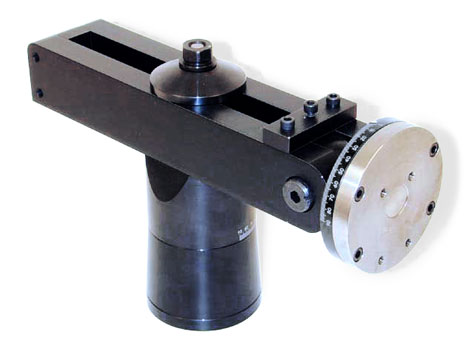

The 8-direction Vertical Milling Column includes a round column base with a key slot that fits over the headstock attachment pin on the lathe and is secured with a set screw. Beyond the adapter base, the column is identical to the column used on the Model 2000 mill.

The standard vertical milling column and deluxe vertical milling column provide Z-axis travel plus headstock rotation. The multi-direction column adds four more directions of movement to provide for some very sophisticated milling operations.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 5680 Instructions

Instructions PDF Download

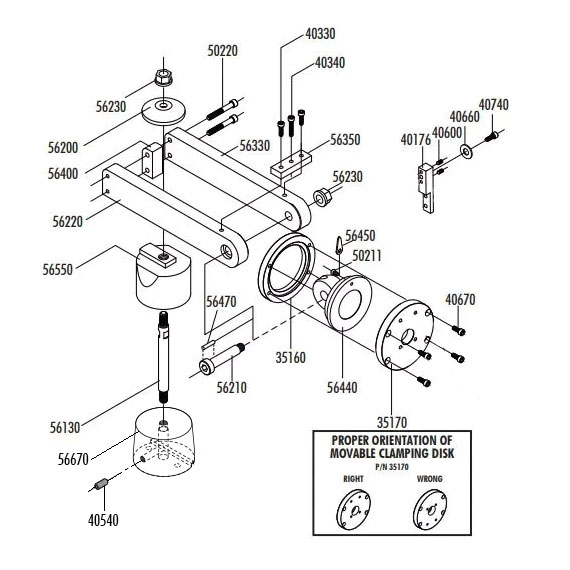

Part No. Description Quantity
35160 Graduated Clamping Ring 1
35170 Movable Clamp Disk 1
40176 Saddle Travel Extension w/Screws 1
40330 10-32 x 5/8″ SHCS 2
40340 10-32 x 1″ SHCS 1
40540 5/16-18 x 3/4″ Cone Point Set Screw 1
40670 10-32 x 1/2″ SHCS 4
50220 1/4-20 x 1-3/4″ SHCS 2
56130 Arm Hold Down Bolt 1
56200 Arm Hold Down Washer 1
56210 3/8-16 x 2″ Should Bolt 1
56220 Swing Arm – Left Side 1
56230 3/8-16 Flange Nut 2
56330 Swing Arm – Right Side 1
56350 Column Adjustment Block 1
56400 Arm Spacer Block 1
56440 Arm Mount 1
56450 Index Tab 1
56470 3/32″ x 1/2″ Dowel Pin 1
56550 Column Top 1
56670 Lathe Column Base 1
76140 5/64″ Hex Key 1
