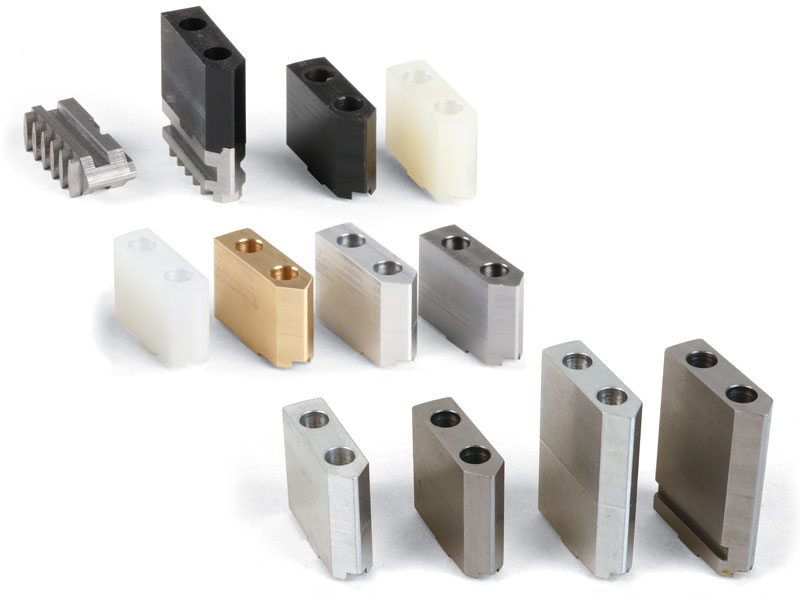

Master steel jaws (top left) accept top jaws made of (top, left to right) Delrin®, nylon, (middle row) Teflon®, brass, aluminum, and mild steel (12L14), (bottom row) tall jaws: 1″ aluminum and mild steel (1018), and 1.5″ aluminum and mild steel (1018).
Bottom Master Jaws are required in order to use Top Jaws
About the Interchangeable Jaws
Certain delicate parts require gripping with softer jaw materials. Other operations require chuck jaws that do not transmit particles of rust to the part being held. To accommodate these special circumstances, Sherline now offers 2-piece chuck jaws with interchangeable top jaws made from special materials, and bottom master jaws*. In place of the standard hardened or optional unhardened (“soft”) steel 1-piece jaws, these new top jaws are .600” tall and come in soft materials like Delrin, Teflon, and Nylon, plus harder but non-rusting materials like brass and aluminum. The replaceable top jaws are fastened to the hardened steel bottom jaws with two countersunk socket head screws. They are not stepped so the customer can machine them for custom holding applications. Other materials are available by request.
*Please note that you must purchase the bottom master jaws before you can use the top jaws.
Tall Top Jaws

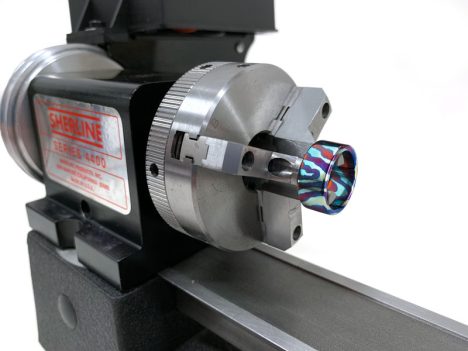

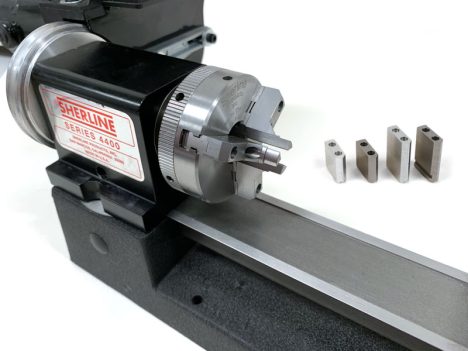

We also offer taller jaws with heights of 1” and 1-1/2”. The tall jaws are made of aluminum and mild steel. These taller jaws were developed for a customer who uses our lathe for custom jewelry design and can be machined to hold custom work, as seen in the photo to the right.
About Top-Jaw Custom Orders
Click this LINK or the Top-Jaw Custom Orders tab above to design your own chuck jaws.
NOTE: To customers who are buying these jaws for an existing chuck, please measure the width of your current chuck jaws with a pair of mics so we can grind your master jaws to match. State your current jaw width in the comments box above. For first-time buyers who are buying a new chuck with these Master jaws, your jaws will be ground to match your chuck. The prices shown are for the jaws only (new chuck is not included).
Using the Reference Diagram for Custom Orders

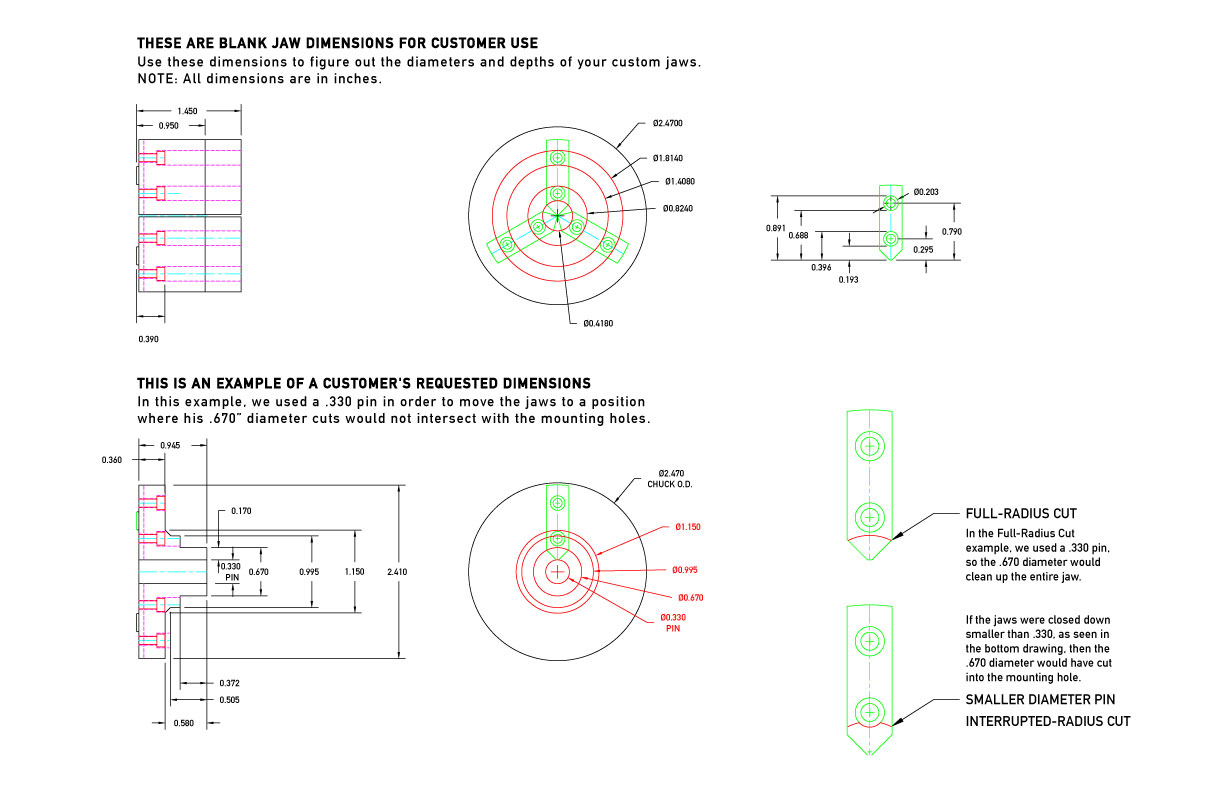

Use the diagram below as a template for designing your custom jaws before filling out the form. These dimensions show the chuck jaw blank dimensions and the jaw position when the jaws are clamping a .032″ pin (the smallest pin possible).
In the customer example, we used a .330″ pin, so the .670″ diameter would clean up the entire jaw. If the jaws were closed down smaller, then the .670″ diameter would have cut into the mounting hole (see the Full-Radius Cut drawing compared to the Interrupted-Radius Cut drawing for reference).
Click this link for a downloadable, printable version of the diagram: Custom Chuck Jaws Sample Diagram
Always wear safety glasses when operating machine tools.
|Top Jaw Height||Material|
|0.6″||Delrin®, Nylon, Teflon®, Brass, Aluminum, and Unhardened Steel|
|1.0″||Aluminum, Mild Steel|
|1.5″||Aluminum, Mild Steel|
We offer two types of 3D object files: .igs and .stp.
- To view .igs files you need an IGS viewer. CLICK HERE to download a FREE IGS viewer.
- To view .stp files you need an STP viewer. CLICK HERE to use Autodesk’s FREE A360* online file viewer. STP is a file extension for a 3-D graphic file used by CAD software. STP stands for STandard for the Exchange of Product model data. STP files are used to store 3D image data in an ASCII format, following the standards defined in ISO 10303-21: Clear Text Encoding of the Exchange Structure.
- Each 3D file format has been compressed into a .zip file to save file space. Click on the .zip file link below to download it to your computer.
- Extract the .zip file to the drive location of your choice.
- Open the .igs file using the IGS Viewer, or open the .stp file using the A360 Autodesk online viewer.
*NOTE: There are also other free STP viewers that can be downloaded directly to your computer.
These files are available in STP format only at this time.
CLICK HERE to download the 11415 4-Jaw Scroll Master Jaw 3D STP file.
CLICK HERE to download the 11445 3-Jaw Scroll Master Jaw 3D STP file.
CLICK HERE to download the 11455 Interchangeable Top Jaw 3D STP file.
CLICK HERE to download the 11465 4-Jaw Independant Master Jaw 3D STP file.
