Rotating Mill Vise Base

SKU: 3570 Category:

Product Description

About the Rotating Mill Vise Base

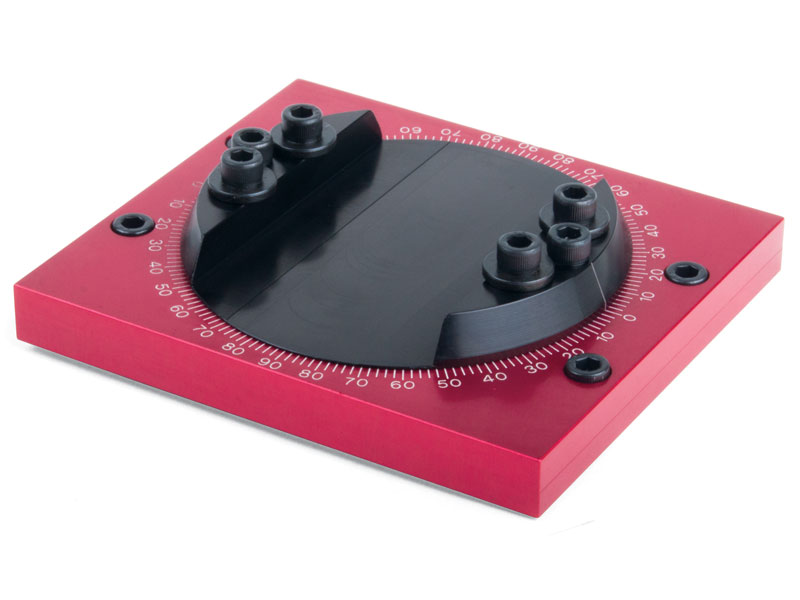

When mounting the mill vise to the table, this base will allow the vise to be rotated to any angle. The red anodized base is laser engraved with angle measurements in 1° increments all the way around. A witness mark is engraved on the side of the rotating collar that holds the vise. The locking washers can be loosened, which allows the vise to slide forward and back in the fixture for further adjustment. A locking ring underneath pulls the collar down onto the base to lock it securely when the two hold-down screws are tightened. The low-profile tooling plate base only raises the height of the vise 1/2″. Four T-nuts and hold-down bolts are included.

The rotating vise base eliminates clamping and unclamping the vise to produce angles. Once mounted square to the table, the vise can be positioned using the laser engraved protractor scale as a guide for setting the angle. Properly positioned, the rotating base can even be used as a simple rotary table to drill or machine small, radially symmetrical patterns.

If you do not already have a vise and are considering purchasing both a vise and a rotating base, they can be purchased together at a price that is less than the two purchased individually.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download 3570 PDF Instructions

Instructions PDF Download

Part No. Description Quantity
35710 Vise base 1
35720 Rotating base–vise 1
35730 Clamp ring–vise 1
35740 Vise clamp 4
30561 10-32 T-nut 4
40330 10-32 x 5/8″ SHC Screw 4
40770 10-32 x 5/16″ SHC Screw 4
40690 10-32 x 3/4″ SHC Screw 2
