6720_pic

Image shown is a representation only. Actual product may vary.

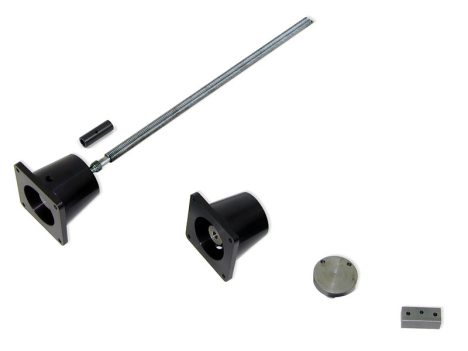

CNC-Ready Lathe Upgrade Kits

Clear selection

-

SKU: N/A Categories: ,

Any existing Sherline lathe can be converted to CNC-ready status. The installation will involve drilling and tapping several holes to attach the stepper motor mounts. The kits include drill blocks that are attached to the appropriate table or bed using the single existing hole, and then two new holes are drilled using the block as a guide. The holes are tapped, and the new mount is installed. In the case of the lathe leadscrew, a new leadscrew must also be installed. Complete instructions for the conversion are supplied with the kits.

NOTE: Any new Sherline machine can also be ordered from the factory with stepper motor mounts already installed. Go to the Lathes or Mills pages for descriptions and prices.

What does “CNC-Ready” mean

CNC-ready means the machine is ready to bolt on stepper motors and apply CNC control to them by means of a system that the user must supply. If you cannot develop your own CNC system, several aftermarket suppliers offer stepper motors, drivers, and CNC software to complete the system. See our CNC Dealers page for links to aftermarket system suppliers.

LATHE KITS

The complete upgrade kit for the Lathe includes:

  • 2 Stepper Motor Mounts
  • CNC-RH Coupling Preload Nut
  • CNC-LH Coupling Preload Nut
  • CNC Lathe Bed Leadscrew
  • CNC Lathe Leadscrew Thrust
  • 4 Stepper Motor Preload Bearings
  • 2 CNC Couplings
  • CNC Template, Bed Bushing
  • CNC Template, Slide Bushing
  • Screws for Motor Mount Attachment

The Lathe Z-Axis upgrade kit includes:

  • 1 Stepper Motor Mount
  • CNC-RH Coupling Preload Nut
  • 2 Stepper Motor Preload Bearings
  • 1 CNC Coupling
  • CNC Lathe Bed Leadscrew
  • CNC Lathe Leadscrew Thrust
  • CNC Template, Bed Bushing
  • Screws for Motor Mount Attachment

The Lathe X-Axis upgrade kit includes:

  • 1 Stepper Motor Mount
  • CNC LH Coupling Preload Nut
  • 2 Stepper Motor Preload Bearings
  • 1 CNC Coupling
  • CNC Template, Slide Bushing
  • Screws for Motor Mount Attachment

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download LATHE CNC Upgrade Instructions

Instructions PDF Download
