Split Bed Pool-Cue Lathe

-

Split Bed Pool-Cue Lathe (Includes headstock and motor, 2.5″ chuck, spur driver, tailstock, and live center)

4 week lead time

Clear selection
    Reset options
SKU: N/A Categories: ,

Product Description

About the Split Bed Pool-Cue Lathe

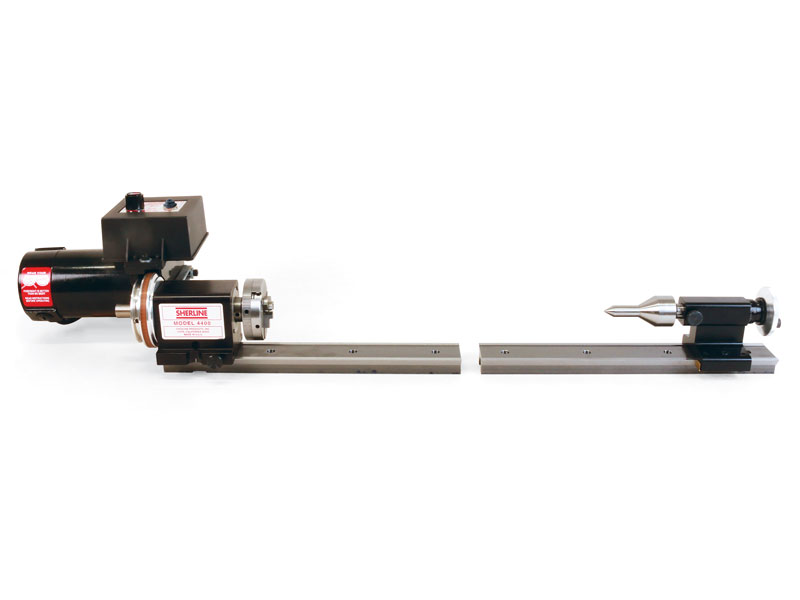

What we have offered to our pool cue manufacturers to date is our spliced bed lathe in a 48″ length. One of our customers (Bentley Custom Cues) requested a split bed lathe setup. The primary advantage of the split bed over the spliced bed lathe is cost. This Split Bed Lathe setup allows custom pool cue makers the ability to adjust the distance between the headstock and the tailstock, depending on the length of the stock being turned, without the expense of ordering a custom extended lathe bed.

Most of our pool cue lathes are not true lathes in the standard definition; they are being used as a motorized turning axis mounted to a CNC router. Because all two-piece pool cue sections are mostly the same length, and the cutting/turning tool is not connected to our lathe bed, the center section of our spliced bed is never used. With the split-bed design, the headstock attachment bed is mounted to your CNC Router table. Then you mount the tailstock attachment bed at a given distance away from the bed that will work best for your pool cue length.

Both beds get the bottom ground to the same overall thickness within .002″ of each other. The end-user must then position the beds on his router table and indicate them in so they align with each other. Each bed section comes with (3) 10-32 x 1.0″ SHCS to secure the bed to your table.

The stock is held between the Pool Cue Live Center in the tailstock and either a Spur Driver or a 2.5″, 3-Jaw Chuck on the headstock.

What’s Included:

  • Headstock Attachment Bed-12″
  • Tailstock Attachment Bed-12″ or 24″
  • Headstock with Motor Unit
  • Pivot Pin and Headstock Key
  • Pool Cue Lathe CNC Bed Hold-down
  • Toggle-Switch Dust Cover
  • Tailstock Assembly
  • Pool Cue Live Center
  • Spur Driver
  • 2.5″ 3-Jaw Chuck
  • 10-32 x 1.0″ SHC Screws for mounting the lathe beds

You can order it as noted above, or you can customize your accessories by contacting us at (800) 541-0735 or (760) 727-5857. The best time to call is Monday through Friday between 11 AM and 3 PM (Pacific). Please ask for Karl Rohlin or Charla Papp.



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 7000 Hole Mounting Pattern

Instructions PDF Download

Part No. Description Quantity
32010-PC Headstock Attachment Bed-12″ 1
32010 Tailstock Attachment Bed-Standard 12″ 1
32010-24 Tailstock Attachment Bed-Optional 24″ 1
3306 Headstock with Motor Unit 1
40240 Lathe Pivot Pin 1
40260 Precision Ground Head Key 1
70400 Pool Cue Lathe CNC Bed Hold-down 1
3015 Toggle Switch Dust Cover 1
4111A Tailstock Assembly 1
1182PC Pool Cue Live Center 1
3035 Spur Driver 1
1041 2.5″ 3-Jaw Chuck 1
40340 10-32 x 1.0″ SHCS for mounting the lathe beds 6
