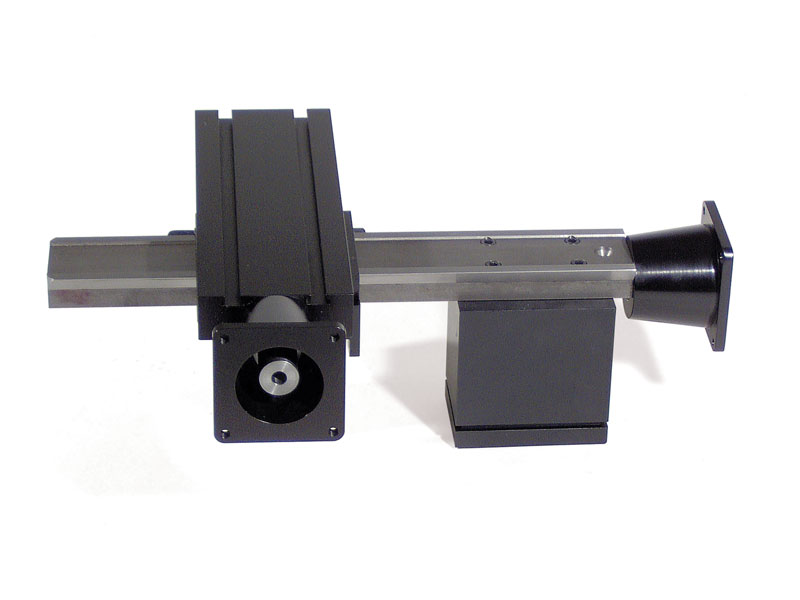

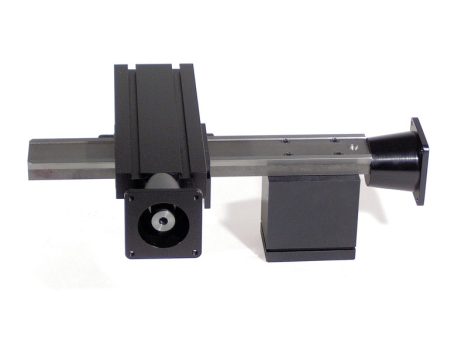

2-Axis CNC-Ready Machine Slide (w/Steel Bed on Raised Base)
Stepper motors are not included.
- The slides are manufactured primarily from 6061-T6 aluminum and finished with a black anodizing. The slides that incorporate steel parts have ground dovetails.
- The table is 8″ x 2.75″, and any table is available with either an inch or metric leadscrew.
- Leadscrews are precision rolled from steel, and table screws are located under the table, out of the way of chips. Leadscrew backlash is adjustable.
- Dovetailed tables and saddles have adjustable gibs to eliminate play.
- 1-5/8″ handwheels are graduated in .001″ increments on inch slides and in .01 mm increments on metric slides.
- Stepper motor mounts for NEMA 23 stepper motors.
NOTE: CNC-ready slides cannot be operated manually until stepper motors are installed.
FROM THE BOTTOM—Two 1/4-20 holes are provided in the base’s bottom on 2-inch centers for mounting.
FROM THE TOP—If access is not available from the bottom, the slide can be mounted from the top using the four provided angle clamps. They slide into the groove around the perimeter of the base, and holes are drilled in the mounting surface and tapped to accept the 10-32 socket head cap screws provided. Use all four clamps for the most secure mount.
Our slides’ weight capacity is about 10 lbs. depending on where the weight is located and how long the table is. On an 18″ table, you should not go more than 10 lbs. of weight at the end of the table (there is a leverage factor). If the weight is more centrally located (closer to the base), you can exceed the 10 lbs. limit.
Under heavy constant use, the dovetail area of the slide will start to show some wear on the anodize after one year (2080 hours). They are still fully functional at this point, but the anodized coating will begin to wear thin. The dovetail and the screw will last longer if you keep them lubricated with light oil*.
The leadscrews have a rolled thread which is hardened a bit by the rolling process. The backlash nuts are brass. The nut is the softer material, and therefore it is the part that wears out. The backlash nut is adjustable, so it can compensate for the wear until the threads are gone. You should get the same duty cycle (2080 hours) from the backlash nut before it will need to be adjusted or replaced.
*NOTE: Do not use WD-40 as a lubricant on these slides. WD-40 will remove the anodized coating from these parts!
Always wear safety glasses when operating machine tools.
Download PDF 6560 Instructions
|Table size||2.75″ x 8″ (70 mm x 203 mm)|
|Table height above mounting surface||5.13″ (130 mm)|
|Table travel||X-axis = 6.25″ (159 mm), Y-axis = 5.38″ (137 mm)|
|Hold-down provision||2 T-slots|
|Mounting provision||2 holes 1/4-20 in the bottom of the base plus slot for angle clamps|
|Handwheels||1-5/8″ laser-engraved aluminum handwheels (for Stepper Motors)|
|40080 (41040 Metric)||1-5/8″ Handwheel (for Stepper Motors)||2|
|40174 (41170 Metric)||Saddle Nut, Plain||1|
|40330||10-32 x 5/8″ Socket Head Cap Screw||1|
|40520||10-32 x 3/16″ Set Screw||2|
|40600||10-32 x 1/4″ Flat Point Set Screw||2|
|40670||10-32 x 1/2″ Socket Head Cap Screw||1|
|40740||10-32 x 7/8″ Socket Head Cap Screw||4|
|40890 (41890 Metric)||Slide Screw Insert Nut||1|
|44210 (44220 Metric)||Crosslide Table Leadscrew||1|
|67030 (67031 Metric)||Leadscrew||1|
|67100||8-32 x 3/8″ Socket Head Cap Screws||8|
|67101||Stepper Motor Mount||2|
|67106 (67108 Metric)||Preload Nut (RH)||1|
|67107 (67109 Metric)||Preload Nut (LH)||1|
|67120||3/8″ Flanged Bearing||4|
Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
6566/6566 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
