Product Description
If you want to set up a complete miniature machine shop with just one purchase, the “Ultimate Machine Shop” package makes it easy for you. We have combined our Model 4400-DRO/4410-DRO deluxe 3.5 x 17″ lathe and 5400-DRO/5410-DRO Deluxe vertical milling machine with a host of the most popular machining accessories. Included are all the items you need to set up for most machining jobs including cutting tools and holding fixtures.

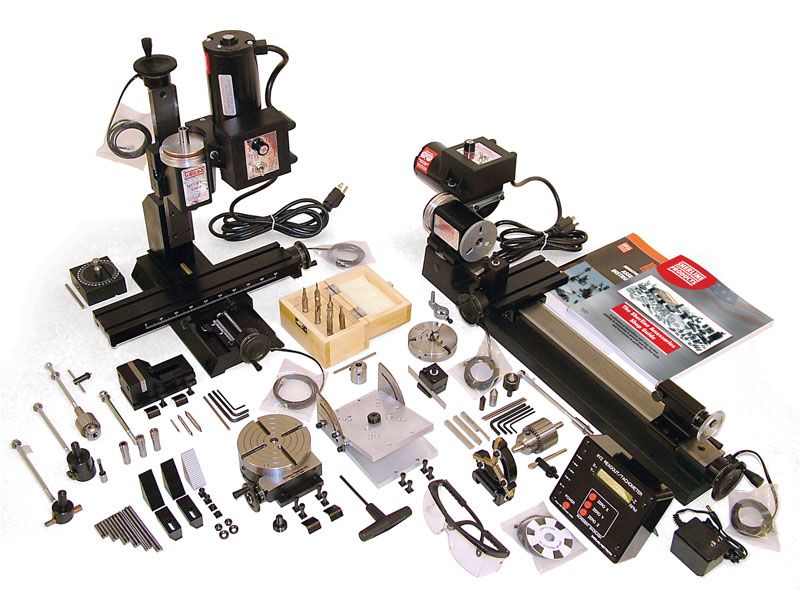

See the individual pages in the “LATHES” and “MILLS” sections for more details on the machines themselves and what comes with them. The package includes everything shown in the photo above.
NOTE: In August 2021, the DRO operation was modified so that it can do metric or inch conversions – providing readings in the units required with any leadscrew installed. DROs shipping after August 2021 include this feature and older units can be upgraded at a nominal charge (P/N 81705).
In addition to the lathe and mill, you get the following accessories:
LATHE
- 3.1″ 3-jaw Self-centering Chuck
- 3/8″ Drill Chuck w/ Arbors, Key and Drawbolt
- Steady Rest
- Live Center
- Rear Mount Cutoff Tool and Holder
- 3-pc. 1/4″ HSS Tool Set (LH, RH, Boring)
MILL
- Headstock Spacer Block
- 3 pc. Center Drill Set
- Fly Cutter w/ 1/4″ Carbide Cutting Tool
- Boring Head
- Boring Tool (5/16″ min. hole, 1″ max. depth)
- 3-pc. Mill Collet Set w/ Drawbolt
- 1/4″ Drill Chuck w/ #1 Morse Arbor, Key and Drawbolt
- 3/8″ End Mill Holder
- 6-pc. 3/8″ Shank End Mill Set
- Milling Vise
- Step Block Hold-down Set
- 4″ Rotary Table
- Tilting Angle Table
MISCELLANEOUS
- 5/32″ Sherline Hex T-Driver
- Sherline Accessories Shop Guide book
- Safety Glasses
Max clearance (table to spindle) |
8.00″ (203 mm) |
---|---|
Throat (no spacer) |
Optional |
Throat (w/ headstock spacer) |
Adjustable |
Travel, “X” Axis | 8.65″ (220 mm) |
Travel, “Y” Axis | 5.00″ (127 mm) |
Travel, “Z” Axis | 6.25″ (159 mm) |
Hole through spindle | .405″ (10 mm) |
Spindle nose thread | 3/4″-16 T.P.I. |
Spindle nose taper | #1 Morse |
Spindle runout of Morse taper | .0005″ or less |
Handwheel graduations | .001″ (.01 mm) |
Electronically controlled spindle speed range | 70 to 2800 RPM |
Width Overall* | 15.00″ (381 mm) |
Depth Overall* | Base footprint: 13.875″ (352.5 mm); With fully extended brass leadscrew cover: 16.75″ (425.5 mm) |
Height Overall (Max.)* | 20.75″ (527 mm) |
Table size | 2.75″ x 13.00″ (70 x 330 mm) |
Hold-down provision | 2 T-Slots |
Shipping Weight | 40 lb. (18.2 kg) |
Movements in addition to X-, Y- and Z-axes |
Headstock rotation (90° left/right) |
Motor | 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications |
Spindle Speed Range | 70-2800 RPM continuously variable by electronic speed control |
*Overall dimensions include motor and speed control
Swing Over Bed | 3.50″ (90 mm) |
---|---|
Swing Over Carriage | 1.75″ (45 mm) |
Distance Between Centers | 17.00″ (430 mm) |
Hole Through Spindle | .405″ (10 mm) |
Spindle Nose Thread | 3/4″-16 T.P.I. |
Spindle Nose Taper | #1 Morse |
Spindle Runout of Morse Taper | .0005″ or less |
Travel of Crosslide | 4.25″ (110 mm) |
Tailstock Spindle Taper | #0 Morse |
Protractor Graduations | 0° to 45° by 5° |
Handwheel Graduations | .001″ (.01 mm) |
Length Overall | 32.5″ (826 mm) |
Width Overall | 8.00″ (267 mm) |
Height Overall | 8.00″ (216 mm) |
Shipping Weight | 31 lb. (14.1 kg) |
Motor | 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.
Click here for motor specifications |
Spindle Speed Range | 70-2800 RPM continuously variable by electronic speed control |
Click on the link for the exploded view of the 4400-Series Manual Lathe to help identify replacement parts.
Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.
If you are still uncertain please call our customer service representatives for help with this item.
