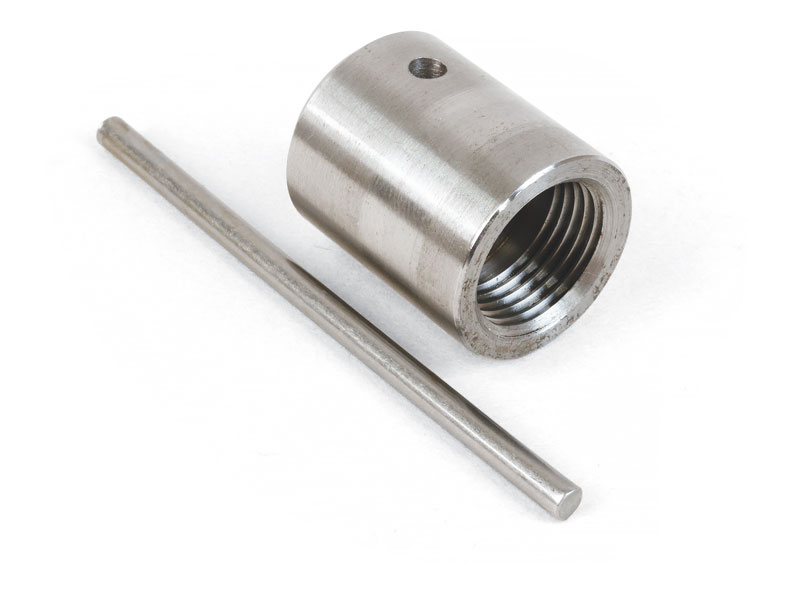

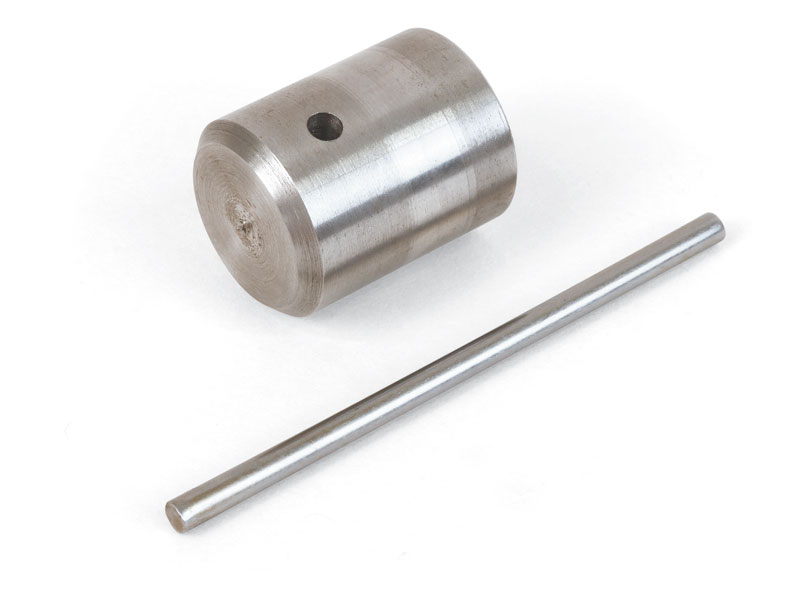

1″ End Mill Holder – Blank

About the Sherline End Mill Holder Style Fixture

This blank fixture can be screwed directly onto the 3/4-16 thread of the Sherline spindle and then turned or milled to hold a part of your choice. It is made from a 1″ diameter 12L14 steel billet cut 1.2″ long. The pre-cut thread assures accurate re-seating on the spindle thread each time you use the fixture.

How to Use this Fixture

The drawing below will give some ideas of how to use the end mill holder style fixture.
