Bar Feeder Front-Mount Assembly

SKU: 8826 Category:

About the Bar Feeder Front-Mount Assembly

The Bar Feeder Front-Mount assembly aligns the bar feeder tube with your machine and also holds the bar feeder tube in place when in use between bar stock changes.

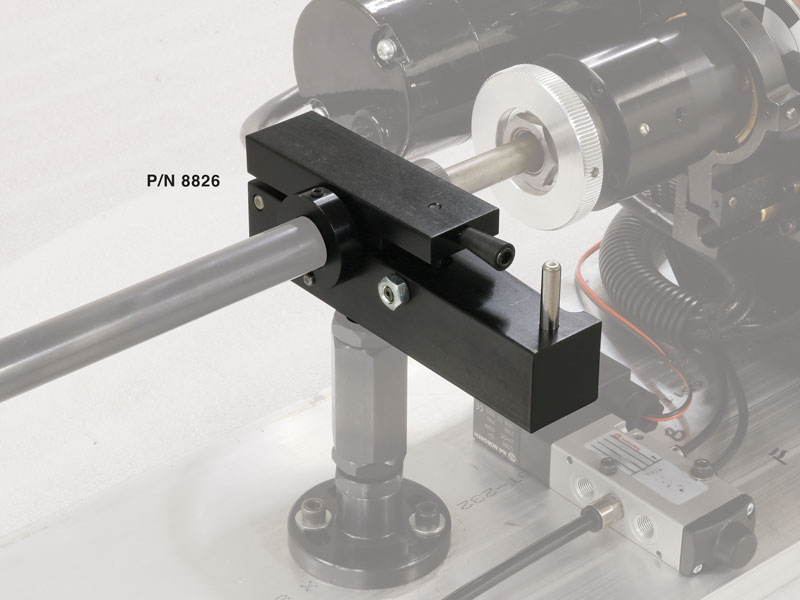

The Bar Feeder Front Mount in use with a CNC Chucker Lathe (machine not included). Click on the image for a larger view.
Part No. Description Quantity
32100 10-32 Hex Nut 1
35630 1/4″ x 1″ Dowel Pin 1
40340 10-32 x 1″ SHCS 1
40740 10-32 x 7/8″ SHCS 1
42060 Handwheel Knob 1
88066 1/4-20 Hex Nut 1
88254 Alignment Collar “Locating Pin” 1
88264 Bar Feeder Stand “Front Top-Mount” 1
88265 1/4″ x 1-1/4″ Dowel Pin 1
88266 High-Torque Ball-Nose Spring Plunger 1
88268 Bar Feeder Stand “Front Top-Mount Clamp” 1
88271 3/4-16 Threaded Adjustment Rod (Chucker Lathe) 1
*88272 3/4-16 Threaded Adjustment Rod (Ball Screw Lathe) 1

*NOTE: Ball screw lathe parts are not available at this time. If you are interested in a bar feeder for a ball screw lathe, please contact Sherline.
