About the Bar Feeder Air-Manifold Mount Assembly
The Bar Feeder Air-Manifold assembly connects the incoming air to both the Air Regulator (P/N 88054) on the 8825 assembly, and the Air Directional Control Valve (P/N 88042) on the 8815 assembly.

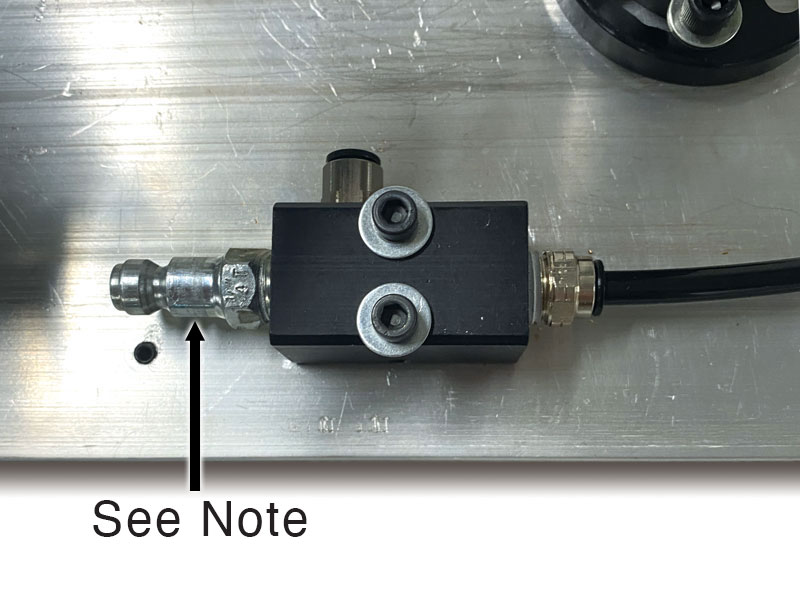

NOTE: Since there are several different styles of 1/4″ NPT quick-connect air line fittings, we do not supply this part. The customer should purchase one that matches their existing air hose fitting.
We’ve separated the Bar Feeder into two components to better support customers who want to build their own custom bar feeder system.
Beyond its use in a bar feeder setup, this assembly can also function as a programmable collet control for opening and closing the collet. You can use M10 and M11 G-code commands to close and open the chuck, respectively.
The Pneumatic Bar Feeder Activation Cylinder Assembly works with our machine and 3C lever collet closer to pneumatically open and close the collet. Click the “Instructions” tab above to download setup documentation.
NOTE: This system is designed for use with the MASSO Touch controller featuring the G3 board. The older G2 board is not compatible with the required MASSO relay module. If you are using a control system other than the MASSO Touch, please consult your controller manufacturer for wiring diagrams and compatibility. Most modern CNC controllers are designed to send relay signals to control external devices.
