Deluxe Ultimate CNC Machine Shop

Clear selection
SKU: N/A Category: Tag:

Product Description

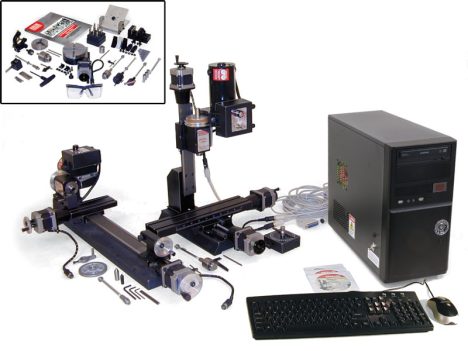

Sherline’s Ultimate CNC Machine Shop comes complete with CNC-ready lathe and mill plus the stepper motors, computer, software, and cables to run them.

The system includes:

  • Deluxe 3.5″ x 17″ lathe with two stepper motors, in either inch or metric measurements
  • Deluxe Mill with three stepper motors, in either inch or metric measurements
  • Handwheels on the rear shafts of the stepper motors also allow manual control
  • Rotary table with stepper motor (for use as a 4th axis on the mill) and the computer
  • A computer with Ubuntu Linux-based OS with linuxcnc 4-axis CNC software preinstalled
  • Keyboard and mouse
  • 4-axis driver board and power supply installed inside the computer to run either the mill or lathe, one at a time
  • Computer cables to the X-, Y-, and Z-axes are 69″ in length
  • Instruction and utility CD. The CD includes complete instructions, and several free utilities to translate CAD files or TrueType fonts into G-code.
  • A blank 4GB USB flash drive is also included
  • 1-year warranty on all components for non-production use. 90-day warranty on CNC and computer-related components.

You supply only a monitor.

NOTE: Depending upon availability, actual computer supplied with system may look different than shown above.

In addition to the lathe, mill, and computer you get the following accessories:

  • 3.1″ 3-jaw chuck
  • 3/8″ Drill Chuck
  • 1/4″ Drill Chuck
  • Steady rest
  • Live center
  • Mill Headstock Spacer
  • Rear Mount Cutoff Tool and Holder
  • 3-piece HSS 1/4″ cutting tool set
  • Headstock spacer block
  • Step block hold-down set
  • Fly Cutter with carbide tool
  • Boring head
  • 3-piece end mill set w/ drawbolt
  • Boring tool
  • 3/8″ end mill holder
  • Milling vise
  • 4″ CNC rotary table with stepper motor
  • Tilting angle table
  • 6-pc. 3/8″ Shank End Mill Set
  • Sherline 5/32″ hex T-driver
  • 3-piece center drill set
  • Sherline Accessories Shop Guide book
  • Safety glasses

Sherline CNC Specification Links

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

Download PDF DRO Instructions

Instructions PDF Download

*Overall dimensions include motor and speed control
Max clearance
(table to spindle)
8.00″ (203 mm)
Throat
(no spacer)
Optional
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis5.00″ (127 mm)
Travel, "Z" Axis6.25″ (159 mm)
Hole through spindle.405″ (10 mm)
Spindle nose thread

3/4″-16 T.P.I.
Spindle nose taper#1 Morse
Handwheel graduations.001″ (.01 mm)
Electronically controlled spindle speed range70 to 2800 RPM
Width Overall

15″ (381 mm)
Depth OverallBase footprint: 17.625" (448 mm); With fully extended brass leadscrew cover: 20.5" (520 mm)
Height Overall (Max.)20.75″ (527 mm)
Table size2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision2 T-Slots
Shipping Weight40 lb. (18.2 kg)
Movements in addition to X-, Y- and Z-axesHeadstock rotation 90° left/right
Column rotation90° left/right
Column pivot90° forward/back
Column swing
90° left/right
Column travel(in/out) 5.5″ (140 mm)
Motor90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications
Spindle Speed Range70-2800 RPM continuously variable by electronic speed control
*Overall dimensions include motor and speed control
Swing Over Bed3.50" (90 mm)
Swing Over Carriage1.75″ (45 mm)
Distance Between Centers17.00″ (430 mm)
Hole Through Spindle.405″ (10 mm)
Spindle Nose Thread3/4″-16 T.P.I.
Spindle Nose Taper#1 Morse
Spindle Runout of Morse Taper.0005″ or less
Travel of Crosslide4.25″ (110 mm)
Tailstock Spindle Taper#0 Morse
Protractor Graduations0° to 45° by 5°
Handwheel Graduations.001″ (.01 mm)
Width Overall

8.00″ (267 mm)
Length Overall32.5″ (826 mm)
Height Overall (Max.)8.00″ (216 mm)
Shipping Weight31 lb. (14.1 kg)
Motor90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications
Spindle Speed Range70-2800 RPM continuously variable by electronic speed control

Click on the link for the exploded view of the 8400 and 8440 Series CNC Lathes to help identify replacement parts.

Click on the link for the exploded view of the 8540/8541 CNC Deluxe Mill to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.
