Two-Position Tool Post (1/4″-1/4″)

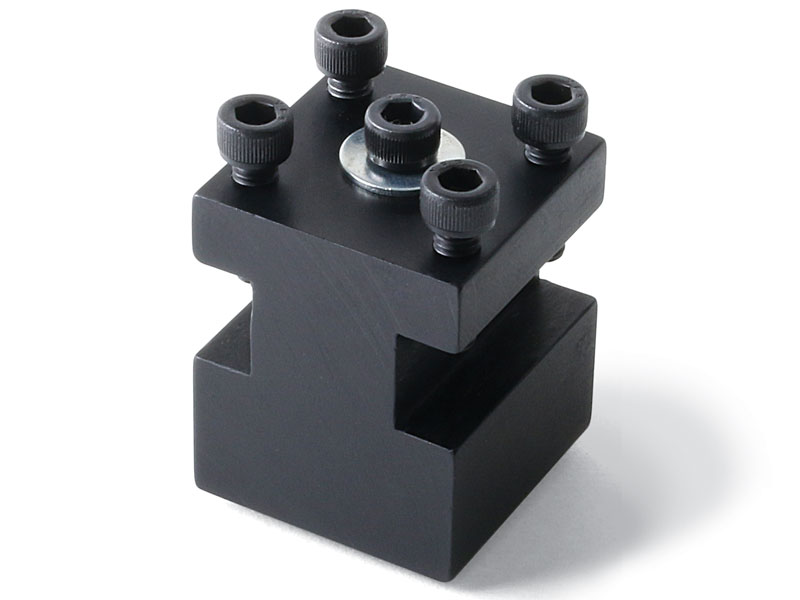

Two-Position Tool Post #3003 (1/4″-1/4″)
About the Two-position Tool Holder
It is not unusual to have to stop and change lathe tools several times while turning a part on the lathe. The change may be to switch from a left-hand tool to a right-hand tool, from a sharp-nosed tool to a radiused tool, or from a roughing tool to a finishing tool. Whatever the reason, each change requires a little setup time. This time can be reduced by using a two-position tool post. Each Sherline two-position tool post mounts two lathe tools. By having one or more of these tool posts with your favorite lathe tools pre-mounted in them, you can simplify your work and reduce the time required to change tools.
P/N 3003 holds two 1/4″ square tool bits. P/N3008 is similar but is designed to hold a 5/16″ (8 mm) square tool bit on one side, and a 3/8″ (10 mm) square tool bit on the other side.
Always wear safety glasses when operating machine tools.
|Body Coating||Black Anodized|
|Body Dimensions (H x W X D)||1.5″ x 1.25″ x 1.25″|
|30031||2-Position Tool Post Body (Holds two 1/4″ square tool bits)|
|40250||Tee Nut – Tall|
|40330||(4) 10-32 x 5/8″ SKT HD Cap Screw|
|40660||#10 Washer 3/16|
|40340||10-32 x 1″ SKT HD Cap Screw|
