13″ Lathe Crosslide and Saddle Assembly – Manual
Product Description

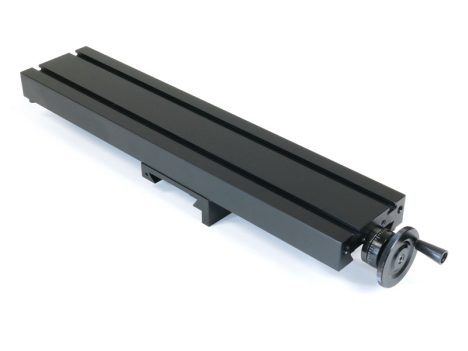

About the 13″ Crosslide and Saddle Assembly
This 13″ lathe crosslide is for those who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe. The 13″ crosslide can hold multiple gang-tooling tool posts.
The 13″ lathe crosslide is .870″ thick (as opposed to the standard 6″ crosslide, which is .625″ thick) and is not recommended to replace your lathe crosslide for normal use. The extra thickness of this crosslide requires a headstock riser plate (P/N 1295) to put tooling on center with the headstock. When you switch to a gang-tooling setup using the 13″ crosslide along with a riser plate, you will no longer be able to use your tailstock! We make a riser for the headstock but not one for the tailstock, so parts cannot be turned between centers. Some of our other accessories, such as the thread-cutting attachment, can also not be used with this thicker crosslide.
The 13″ lathe crosslide and saddle assembly includes a leadscrew and a standard 1-5/8″ handwheel.

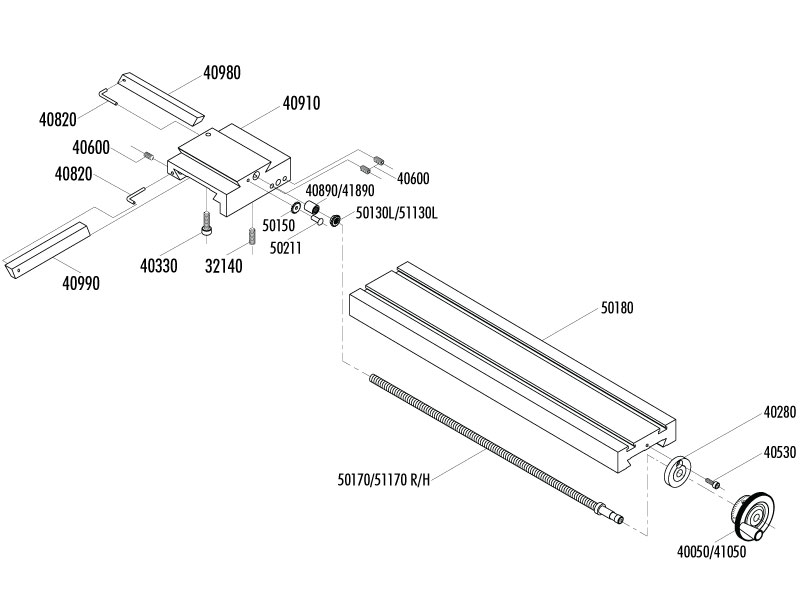

| Part No. | Description | Quantity |
|---|---|---|
| 32140 | 10-32 x 1/2″ Cup Point Set Screw | 1 |
| 40050 41050 |
Y-Axis Handwheel (Inch) Y-Axis Handwheel (Metric) |
1 |
| 40280 | Thrust Collar | 1 |
| 40330 | 10-32 x 5/8″ SHCS | 1 |
| 40530 | 5-40 x 3/8″ SHCS | 1 |
| 40600 | 10-32 x 1/4″ Flat Point Set Screw | 3 |
| 40820 | Gib Lock | 2 |
| 40890 41890 |
Slide Screw Insert (Inch) Slide Screw Insert (Metric) |
1 |
| 40910 | Lathe Saddle | 1 |
| 40980 | Crosslide Gib | 1 |
| 40990 | Saddle Gib | 1 |
| 50130L 51130L |
Lathe Anti-Backlash Nut (Inch) Lathe Anti-Backlash Nut (Metric) |
1 |
| 50150 | Anti-Backlash Lock | 1 |
| 50170 51170 |
Leadscrew, X-axis (Inch) Leadscrew, X-axis (Metric) |
1 |
| 50180 | Mill Table | 1 |
| 50211 | 8-32 x 1/4″ Button Socket Screw | 1 |
