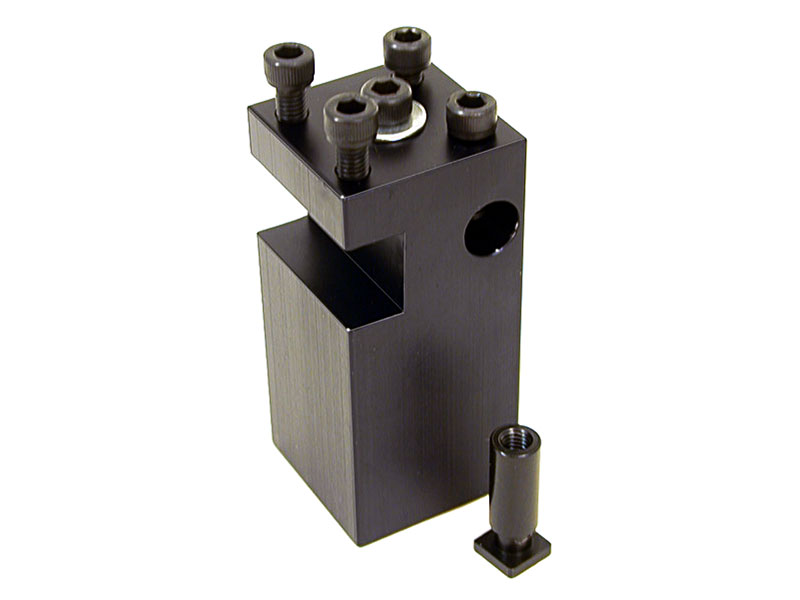

Riser 3/8″ Insert-Holder Tool Post

Riser 3/8″ Insert-Holder Tool Post

SKU: 1289 Category:

Product Description

About the Riser 3/8″ Insert-Holder Tool Post

A riser tool post is used to bring the cutting tool back to lathe centerline height when using a riser block to raise the headstock to turn larger diameter parts. The riser 3/8″ insert tool post holds either a 3/8″ square shank insert tool holder or a 3/8″ round holder.

This tool post is the riser version of Sherline’s standard height P/N 7600 insert holder tool post. It  is designed to fit the larger 3/8″ square and round holders commonly used for carbide or diamond inserted tips. It will also hold Sherline’s own P/N 2256 (RH) and P/N 2257 (LH) 35° inserted tip tool holders. It is machined from solid aluminum and has a black anodized finish.

NOTE: Carbide inserts and inserted tip tools are available through Sherline. Call for a complete listing or see our worldwide website.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 1291 Instructions

Instructions PDF Download

Insert Holder Tool Post
Tool-Post Body Material Aluminum
Body Coating Black Anodized
Body Dimensions (H x W X D) 2.75″ x 1.25″ x 1.25″
12870 Riser 3/8″ Tool-Post Body
12980 1/4-20 x 3/8″ Flat Head Machine Screw, Slotted
12860 10-32 x 2-1/4″ SHC Screw
40250 Tool Post T-Nut
40330 (2) 10-32 x 5/8″ SHC Screw
40660 #10 Washer 3/16
40690 (2) 10-32 x 3/4″ SHC Screw
