Deluxe WW Collet Sets

Clear selection
SKU: N/A Categories: ,

Product Description

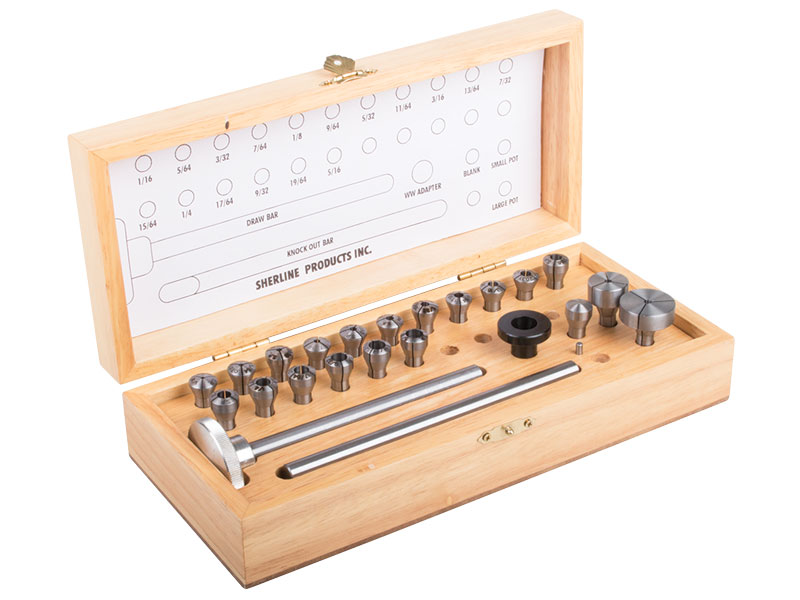

This set contains a complete selection of 17 (14 for the metric set) Sherline WW collets, including a blank, 3/4″ and 1″ pot chucks with dowel pin, an adapter, drawbar, and a knockout bar. It comes in a high-quality wood box constructed with finger joint corners that has a brass latch and hinges. A machined wood insert locates each part, plus a drawing in the lid reminds you where each piece goes to keep things organized. Extra holes are provided should you want to add additional collets to suit your particular needs. This set is a handsome and useful package for the serious miniature machinist.

Inch Collet Sizes:

  • 1/16″, 5/64″, 3/32″, 7/64″, 1/8″, 9/64″, 5/32″, 11/64″, 3/16″, 13/64″, 7/32″, 15/64″, 1/4″, 17/64″, 9/32″, 19/64″, 5/16″

Metric Collet Sizes:

  • 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 7.0 mm, 7.5 mm, 8.0 mm

Each set includes:

  • WW collet adapter*
  • Drawbar & 3/8″ Knockout Bar
  • 3/4″ collet pot chuck
  • 1″ collet pot chuck
  • 2 WW collet blanks, large & small head
  • 1/8″ clamping pin

*NOTE: Our WW collet adapter does not have a keyway pin for the collets. Our customers have been using our WW collets on our lathes without a key pin for over forty years without any problems.

REPLACEMENT INSERT CARDS: If you have damaged or lost your insert card, you can download a new one from the Instructions tab above. Then print it out, cut it to size using the crop mark guides, and insert it back into the box lid.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 1160 Instructions

Instructions PDF Download

Download PDF Sherline WW Collet Comparison

Instructions PDF Download

Download PDF Inch Insert Card Replacement

Instructions PDF Download

Download PDF Metric Insert Card Replacement

Instructions PDF Download

<

Part No. Description Quantity
Common Parts
11570 Knock Out Bar 1
11580 WW Collet Adapter 1
11590 Collet Drawbar 1
116000 WW Collet Blank, Large Head 1
1160001 WW Collet Blank, Small Head 1
1170 WW Collet Box with Insert 1
2100 3/4″ Collet Pot Chuck 1
2101 1″ Collet Pot Chuck 1
1162 Collets (Inch)
116004 1/16″ (.0625) WW Collet 1
116005 5/64″ (.078125) WW Collet 1
116006 3/32″ (.09375) WW Collet 1
116007 7/64″ (.109375) WW Collet 1
116008 1/8″ (.125) WW Collet 1
116009 9/64″ (.140625) WW Collet 1
116010 5/32″ (.15625) WW Collet 1
116011 11/64″ (.171875) WW Collet 1
116012 3/16″ (.1875) WW Collet 1
116013 13/64″ (.203125) WW Collet 1
116014 7/32″ (.21875) WW Collet 1
116015 15/64″ (.234375) WW Collet 1
116016 1/4″ (.25) WW Collet 1
116017 17/64″ (.265625) WW Collet 1
116018 9/32″ (.28125) WW Collet 1
116019 19/64″ (.296875) WW Collet 1
116020 5/16″ (.3125) WW Collet 1
1179 Collets (Metric)
117815 1.5 mm (.0591″) WW Collet 1
117820 2.0 mm (.0787″) WW Collet 1
117825 2.5 mm (.0984″) WW Collet 1
117830 3.0 mm (.1181″) WW Collet 1
117835 3.5 mm (.1378″) WW Collet 1
117840 4.0 mm (.1575″) WW Collet 1
117845 4.5 mm (.1772″) WW Collet 1
117850 5.0 mm (.1969″) WW Collet 1
117855 5.5 mm (.2165″) WW Collet 1
117860 6.0 mm (.2362″) WW Collet 1
117865 6.5 mm (.2559″) WW Collet 1
117870 7.0 mm (.2756″) WW Collet 1
117875 7.5 mm (.2953″) WW Collet 1
117880 8.0 mm (.3150″) WW Collet 1
