The vertical milling table is another method of milling on the Sherline lathe instead of using the vertical milling column. Parts to be machined are mounted to the vertical table. The vertical table is then mounted to the lathe crosslide table and the part is moved past a cutter held in the lathe spindle. This provides three axes of cutting similar to a mill, but in different directions and with shorter X and Y movements. For general milling, we recommend the vertical milling column as a better way to do milling on a lathe, but for specific setups, you may find this compact accessory useful. Many books written for the hobbyist show this type of setup on larger lathes. It can also make a useful fixture for multiple movements when used on the mill or on other special-purpose machines.

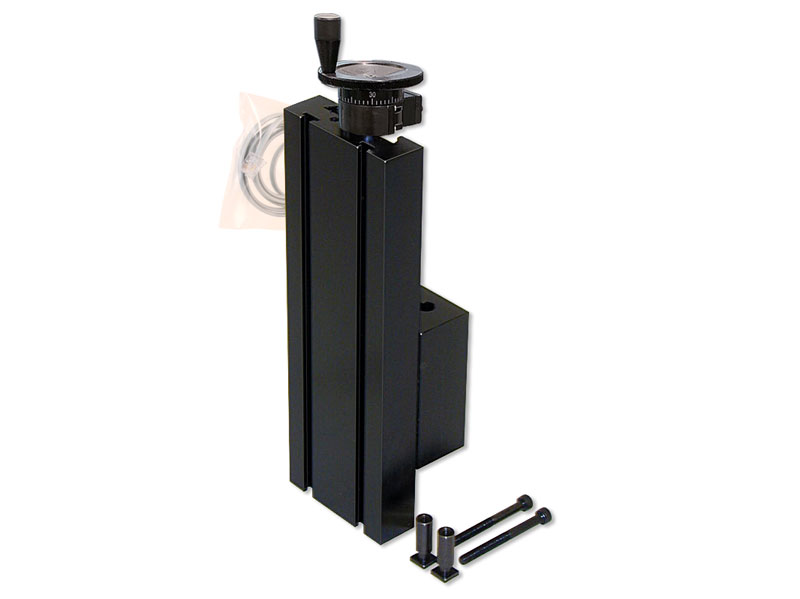

NOTE: that the photo shows the older style 6″ long table. As of March 2004, the table is now both longer at 8″ long and 1/4″ thicker for more rigidity.
The MASSO G3 CNC controller, power supply, stepper motors, cable system and optical encoder are sold as a part of our Accu-Pro line of machines and are not available for purchase separately or as an upgrade option to existing machines.
DRO Box with Power Supply
Do you have a mill and a lathe running DRO, but you have only one digital readout box? You can purchase a second DRO box with a power supply and attach it to your second machine, so you won’t have … Continued
