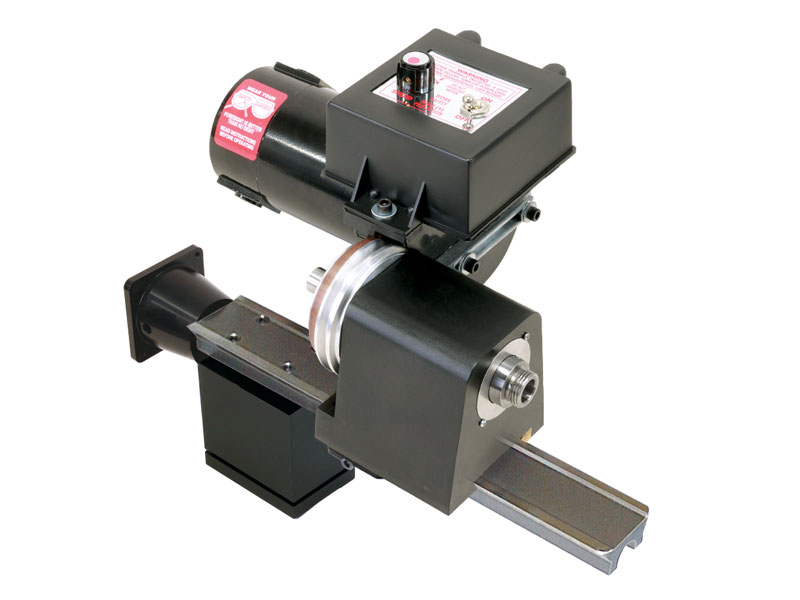

CNC-Ready Single-Axis Machine Slide w/ Dovetailed Headstock & Motor


CNC-Ready Machine Slide with Dovetailed Headstock, DC Motor, and Speed Control
Select your leadscrew options and spindle types for pricing.
Spindle Options: 3/4-16 #1M taper or ER-16

Clear selection
    Reset options

    Nickel/Teflon plating

Product Description

About the Single-Axis CNC-Ready Manual Machine Slide with Dovetailed Headstock & Motor with Speed Control

Steel Bed on Raised Base

  • The steel bed has ground dovetails and is available with either an inch or metric leadscrew.
  • The leadscrew is precision rolled from steel and is located under the table, out of the way of chips. Leadscrew backlash is adjustable.
  • CNC stepper motor mount
  • A 1-5/8″ (41mm) laser engraved aluminum handwheel is provided for mounting to a stepper motor (not included), and is graduated in .001′ increments on inch slides and in .01 mm increments on metric slides.*

*NOTE: CNC-ready slides cannot be operated manually until stepper motors are installed.

Base Mounting Provisions

FROM THE BOTTOM—Two 1/4-20 holes are provided in the base’s bottom on 2-inch centers for mounting.

FROM THE TOP—If access is not available from the bottom, the slide can be mounted from the top using the four provided angle clamps. They slide into the groove around the perimeter of the base, and holes are drilled in the mounting surface and tapped to accept the 10-32 socket head cap screws provided. Use all four clamps for the most secure mount.

Standard Headstock Features

  • The headstocks are made from extruded 6061-T6 aluminum and have a black anodized finish. They are available with your choice of a spindle (3/4-16 #1M taper or an ER-16*).
  • A brass gib on the dovetailed base fits Sherline steel dovetailed bed and column material
  • Spindle bearing dust cover washer
  • ER-16 collet nut ships with the ER-16 spindle headstocks*

*NOTE: We do not sell the collets used with the ER-16 spindle. Those are available through MSC Industrial Supply Co. or other tool supply sources.

Optional Nickel/Teflon Spindles

Most of our spindles are available with a Nickle/Teflon plating as a rustproof option for an additional cost. Check the option box above to add the Nickel/Teflon plating to your spindle order.

Spindle Precautions

These spindles should be considered light duty. A .405 (10 mm) through hole allows long stock to be passed through the spindle. This design provides a lot of versatility but was not intended for long or out-of-round parts to be rotated at high RPM. It is up to the operator to determine if the spindle and the setup are adequate and safe for the job being attempted.

The spindle is equipped with a dust cover, but it is not totally sealed. The presence of dust from grinding operations can shorten bearing life considerably. It was also not designed to be operated in a coolant bath. The spindle shaft should be shielded from coolant spray.

About the 90-Volt DC Motor

The powerful DC motor offers its maximum torque at low RPM, where you need it most in machining. This means it offers far more useable power than an AC/DC motor of equivalent or larger size. It also offers smoother and quieter operations than an AC/DC motor. The V-step pulley has two positions: A high-speed, low-torque position, and a low-speed, high-torque position. The second pulley position lowers the speed range down to about half that of the pulley position.

Standard Motor Features

  • 1/2 HP 90-volt high-torque DC motor (single direction)
  • 2-step “V” belt pulley (2nd position for more torque at low RPM)
  • Fiberglass-reinforced urethane drive belt
  • Variable speed electronic speed control: 70-2800 RPM
  • Load compensating circuit keeps RPM constant
  • Speed control accepts any input from 100 VAC to 240 VAC, 50 or 60 Hz, and automatically converts it to 90V DC output to the motor
  • Eight-foot, three-wire power cord (Select the correct wall plug or converter for your region)

The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.


Always wear safety glasses when operating machine tools.

Download PDF 6530 Instructions

Instructions PDF Download

Height of top of bead above fixture 3.75″ (95.3 mm)
Height of spindle centerline above fixture 5.93″ (150.6 mm)
Spindle centerline height above bed 2.18″ (55.4 mm)
Headstock travel on machine slide 4.625″ (117.5 mm)
Length of headstock base and gib 3.5″ (88.9 mm)
Length of headstock case (at top) 3.00″ (76.3 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread (Model 6530, 6531) 3/4-16
Spindle nose internal taper (Model 6530, 6531) #1 Morse
Spindle nose thread and taper (Model 6532, 6533) ER-16
Spindle bearings (2) 20 mm, class 5, lifetime lubricated ball bearings with adjustable preload
Spindle speed range 70-2800 RPM
Current input 100VAC to 240VAC, 50 or 60 Hz.
Mounting provision 2 holes 1/4-20 in bottom of base on centerline, 2.0″ (50.8 mm) on center,s plus slot for angle clamps
Part No. Description Quantity
6517 Dovetail-Base Headstock, 3/4-16 #1M Taper Spindle with 90-Volt DC Motor and Speed Control Unit (6530, 6531) 1
6518 Dovetail-Base Headstock, ER-16 Spindle with 90-Volt DC Motor and Speed Control Unit (6532, 6533) 1
12050 8-32 x 3/8″ SHCS 4
40080 (41040 Metric) 1-5/8″ Handwheel (for Stepper Motor) 1
40520 10-32 x 3/16″ Cup Point Set Screw 1
40740 10-32 x 7/8″ SHCS 4
40174 Saddle Nut 1
45030 Bed 1
65451 Base 1
67030 (67031 Metric) Leadscrew 1
67101 Stepper Motor Mount 1
671052 CNC Coupling 1
67107 (67109 Metric) Preload Nut (LH) 1
67111 8-32 x 7/8″ SHCS 2
67115 5-40 x 7/8″ SHCS 1
67120 3/8″ Bearing 2

Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
6530/6531 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
