Product Description

Ultimate Machine Shop Package with NexGen Mill

If you want to set up a complete miniature machine shop with just one purchase, the “Ultimate Machine Shop” package makes it easy for you. We have combined our Model 4400/4410 deluxe 3.5 x 17″ lathe and a Model 5800/5810  NexGen vertical milling machine with a host of the most popular machining accessories. Included are all the items you need to set up for most machining jobs including cutting tools and holding fixtures.

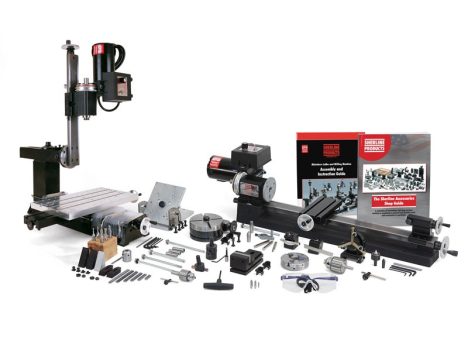

See the individual pages in the “LATHES” and “MILLS” sections for more details on the machines themselves and what comes with them. The package includes everything shown in the photo above.

In addition to the lathe and mill, you get the following accessories:

  • 3.1″ 3-jaw Self-centering Chuck
  • Steady Rest
  • Live Center
  • Rear Mount Cutoff Tool and Holder
  • 3-pc. 1/4″ HSS Tool Set (LH, RH, Boring)
  • Step Block Hold-down Set
  • 5/32″ Sherline Hex T-Driver
  • 3 pc. Center Drill Set
  • Fly Cutter w/ 1/4″ Carbide Cutting Tool
  • Boring Head
  • 3-pc. Mill Collet Set w/ Drawbolt
  • Boring Tool (5/16″ min. hole, 1″ max. depth)
  • 1/4″ Drill Chuck w/ #1 Morse Arbor, Key and Drawbolt
  • 3/8″ Drill Chuck w/ Arbors, Key and Drawbolt
  • 3/8″ End Mill Holder
  • Milling vise
  • 4″ Rotary Table
  • Tilting Angle Table
  • Sherline Accessories Shop Guide book
  • Safety Glasses
  • 6-pc. 3/8″ Shank End Mill Set

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

*Overall dimensions include motor and speed control
Max clearance
(table to spindle)
14.00″ (356 mm)
Throat
(no spacer)
Adjustable
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis13.65″ (347 mm)
Travel, “Y” Axis9.38″ (238 mm)
Travel, "Z" Axis5.38″ (137 mm)
Hole through spindle.405″ (10 mm)
Spindle nose thread

3/4″-16 T.P.I.
Spindle nose taper#1 Morse
Handwheel graduations.001″ (.01 mm)
Electronically controlled spindle speed range70 to 2800 RPM
Width Overall

20.00 (508 mm)
Depth OverallBase footprint: 20.625" (524 mm); With fully extended brass leadscrew cover: 27.875" (708 mm)
Height Overall (Max.) 24.50″ (622 mm)
Table size2.75″ x 18.00″ (70 x 457 mm)
Hold-down provision3 T-Slots
Shipping Weight50 lb. (22.7 kg)
Movements in addition to X-, Y- and Z-axesHeadstock rotation 90° left/right
Column pivot90° forward/back
Column swing
90° left/right
Column travel(in/out) 5.5″ (140 mm)
Motor
Spindle Speed Range
*Overall dimensions include motor and speed control
Swing Over Bed3.50" (90 mm)
Swing Over Carriage1.75″ (45 mm)
Distance Between Centers17.00″ (430 mm)
Hole Through Spindle.405″ (10 mm)
Spindle Nose Thread3/4″-16 T.P.I.
Spindle Nose Taper#1 Morse
Spindle Runout of Morse Taper.0005″ or less
Travel of Crosslide4.25″ (110 mm)
Tailstock Spindle Taper#0 Morse
Protractor Graduations0° to 45° by 5°
Handwheel Graduations.001″ (.01 mm)
Width Overall

8.00″ (267 mm)
Length Overall32.5″ (826 mm)
Height Overall (Max.)8.00″ (216 mm)
Shipping Weight31 lb. (14.1 kg)
Motor90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications
Spindle Speed Range70-2800 RPM continuously variable by electronic speed control

Click on the link for the exploded view of the 4000 and 4400 Series Manual Lathes to help identify replacement parts.

Click on the link for the exploded view of the 5800/5810 Mill to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

Shipping

We do not charge a flat rate for shipping because of the variations in weight for our products. Instead we charge you what the shipping company charges us. Our website uses a shipping calculator based on the daily rates for USPS and UPS based on the weight and destination of the shipment. You can also have us use your UPS/FedEx account number to charge your shipping to. Just enter it in the appropriate box on the checkout page.

Domestic orders are shipped Monday – Friday. Expedited orders must be placed by 11 am PST to ship the same day.

Orders shipping ground have a processing time of 2-3 working days for domestic orders and 4-5 working days for international orders. Click here for more information on our shipping and order policies.

Returns

Most merchandise can be returned within 30 day of the purchase date. A refund will be issued to the original form of payment at the original selling price. View our complete return policy and/or start your return online here.



If you’re working with brass or wood we suggest you use the toggle switch dust cover to protect the life of your motor & speed control
