Ultimate Machine Shop CNC Ready Package
If you want to set up a complete miniature machine shop with just one purchase, the “Ultimate Machine Shop” package makes it easy for you. We have combined our Model 4400-CNC/4410-CNC deluxe 3.5 x 17″ lathe and 2000-CNC/2010-CNC milling machine with a host of the most popular machining accessories. Included are all the items you need to set up for most machining jobs including cutting tools and holding fixtures.

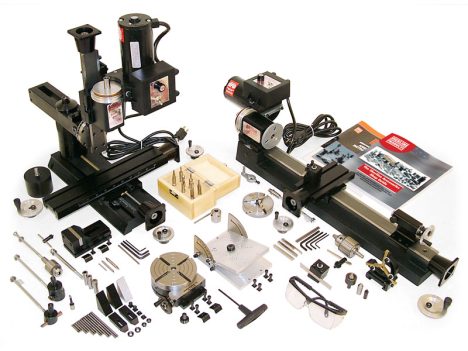

See the individual pages in the “LATHES” and “MILLS” sections for more details on the machines themselves and what comes with them. The package includes everything shown in the photo above.
NOTE: CNC-ready machines cannot be operated manually unless double-shaft stepper motors are installed. All machines that are described as “CNC-ready” have Stepper Motor Mounts, but do NOT include Stepper Motors, Linux computer & software, or CNC software.
In addition to the lathe and mill, you get the following accessories:
LATHE
- 3.1″ 3-jaw Self-centering Chuck
- 3/8″ Drill Chuck w/ Arbors, Key and Drawbolt
- Steady Rest
- Live Center
- Rear Mount Cutoff Tool and Holder
- 3-pc. 1/4″ HSS Tool Set (LH, RH, Boring)
MILL
- Headstock Spacer Block
- 3 pc. Center Drill Set
- Fly Cutter w/ 1/4″ Carbide Cutting Tool
- Boring Head
- Boring Tool (5/16″ min. hole, 1″ max. depth)
- 3-pc. Mill Collet Set w/ Drawbolt
- 1/4″ Drill Chuck w/ #1 Morse Arbor, Key and Drawbolt
- 3/8″ End Mill Holder
- 6-pc. 3/8″ Shank End Mill Set
- Milling Vise
- Step Block Hold-down Set
- 4″ Manual Rotary Table
- Tilting Angle Table
MISCELLANEOUS
- 5/32″ Sherline Hex T-Driver
- Sherline Accessories Shop Guide book
- Safety Glasses
|
|
Always wear safety glasses when operating machine tools. |
Download PDF Assembly and Instruction Guide
| Max clearance (table to spindle) |
9.00″ (229 mm) |
|---|---|
| Throat (no spacer) |
Adjustable |
| Throat (w/ headstock spacer) |
Adjustable |
| Travel, “X” Axis | 8.65″ (220 mm) |
| Travel, “Y” Axis | 7.00″ (178 mm) |
| Travel, “Z” Axis | 5.38″ (137 mm) |
| Hole through spindle | .405″ (10 mm) |
| Spindle nose thread | 3/4″-16 T.P.I. |
| Spindle nose taper | #1 Morse |
| Spindle runout of Morse taper | .0005″ or less |
| Handwheel graduations | .001″ (.01 mm) |
| Electronically controlled spindle speed range | 70 to 2800 RPM |
| Width Overall* | 15.00″ (381 mm) |
| Depth Overall* | Base footprint: 16.25″ (413 mm); With fully extended brass leadscrew cover: 20.625″ (524 mm) |
| Height Overall (Max.)* | 23.38″ (568 mm) |
| Table size | 2.75″ x 13.00″ (70 x 330 mm) |
| Hold-down provision | 2 T-Slots |
| Shipping Weight | 45 lb. (20.1 kg) |
| Movements in addition to X-, Y- and Z-axes |
Headstock rotation (90° left/right) |
| Column rotation | (90° left/right) |
| Column pivot | (90° forward/back) |
| Column swing | (90° left/right) |
| Column travel | (in/out) 5.5″ (140 mm) |
| Motor | 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications |
| Spindle Speed Range | 70-2800 RPM continuously variable by electronic speed control |
*Overall dimensions include motor and speed control
| Swing Over Bed | 3.50″ (90 mm) |
|---|---|
| Swing Over Carriage | 1.75″ (45 mm) |
| Distance Between Centers | 17.00″ (430 mm) |
| Hole Through Spindle | .405″ (10 mm) |
| Spindle Nose Thread | 3/4″-16 T.P.I. |
| Spindle Nose Taper | #1 Morse |
| Spindle Runout of Morse Taper | .0005″ or less |
| Travel of Crosslide | 4.25″ (110 mm) |
| Tailstock Spindle Taper | #0 Morse |
| Protractor Graduations | 0° to 45° by 5° |
| Handwheel Graduations | .001″ (.01 mm) |
| Length Overall | 32.5″ (826 mm) |
| Width Overall | 8.00″ (267 mm) |
| Height Overall | 8.00″ (216 mm) |
| Shipping Weight | 31 lb. (14.1 kg) |
| Motor | 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.
Click here for motor specifications |
| Spindle Speed Range | 70-2800 RPM continuously variable by electronic speed control |
| Max clearance (table to spindle) |
9.00″ (229 mm) |
|---|---|
| Throat (no spacer) |
Adjustable |
| Throat (w/ headstock spacer) |
Adjustable |
| Travel, “X” Axis | 8.65″ (220 mm) |
| Travel, “Y” Axis | 7.00″ (178 mm) |
| Travel, “Z” Axis | 5.38″ (137 mm) |
| Hole through spindle | .405″ (10 mm) |
| Spindle nose thread | 3/4″-16 T.P.I. |
| Spindle nose taper | #1 Morse |
| Spindle runout of Morse taper | .0005″ or less |
| Handwheel graduations | .001″ (.01 mm) |
| Electronically controlled spindle speed range | 70 to 2800 RPM |
| Width Overall* | 15.00″ (381 mm) |
| Depth Overall* | Base footprint: 16.25″ (413 mm); With fully extended brass leadscrew cover: 20.625″ (524 mm) |
| Height Overall (Max.)* | 23.38″ (568 mm) |
| Table size | 2.75″ x 13.00″ (70 x 330 mm) |
| Hold-down provision | 2 T-Slots |
| Shipping Weight | 45 lb. (20.1 kg) |
| Movements in addition to X-, Y- and Z-axes |
Headstock rotation (90° left/right) |
| Column rotation | (90° left/right) |
| Column pivot | (90° forward/back) |
| Column swing | (90° left/right) |
| Column travel | (in/out) 5.5″ (140 mm) |
| Motor | 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications |
| Spindle Speed Range | 70-2800 RPM continuously variable by electronic speed control |
*Overall dimensions include motor and speed control
Click on the link for the exploded view of the 4400-Series CNC-Ready Lathe to help identify replacement parts.
Click on the link for the exploded view of the 5000 and 5400 Series CNC-Ready Mills to help identify replacement parts.
If you are still uncertain please call our customer service representatives for help with this item.
If you are working with brass or wood, we suggest you use the toggle switch dust cover to protect the life of your motor & speed control.
The MASSO G3 CNC controller, power supply, stepper motors, cable system and optical encoder are sold as a part of our Accu-Pro line of machines and are not available for purchase separately or as an upgrade option to existing machines.
