Lathe Crosslide Anti-Backlash Upgrade Kit

Clear selection

Product Description

Starting in early 2014, Sherline added backlash adjustment on the lathe crosslide to all new lathes. This kit is available to retrofit any earlier Sherline lathe. Based on a similar design used for years on the mill X- and Y-axes, it uses a round, knurled brass lock nut on the leadscrew that is tightened against the side of the saddle to pull against the threads in the slide screw insert. This takes out excess play in the threads to adjust backlash to the desired amount. Once adjusted, a knurled lock wheel secured by a button head screw keeps the lock nut from turning. The upgrade kit includes a drill guide block to help you locate the hole that will need to be drilled and tapped in the lathe saddle.

NOTE: This upgrade will not work on our mills. It could be used on the X-axis. However, there is not enough material on the mill saddle to drill and tap the 8-32 hole on the Y-axis.



40950_pic1

40950_install_pic

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 40950 Instructions

Instructions PDF Download

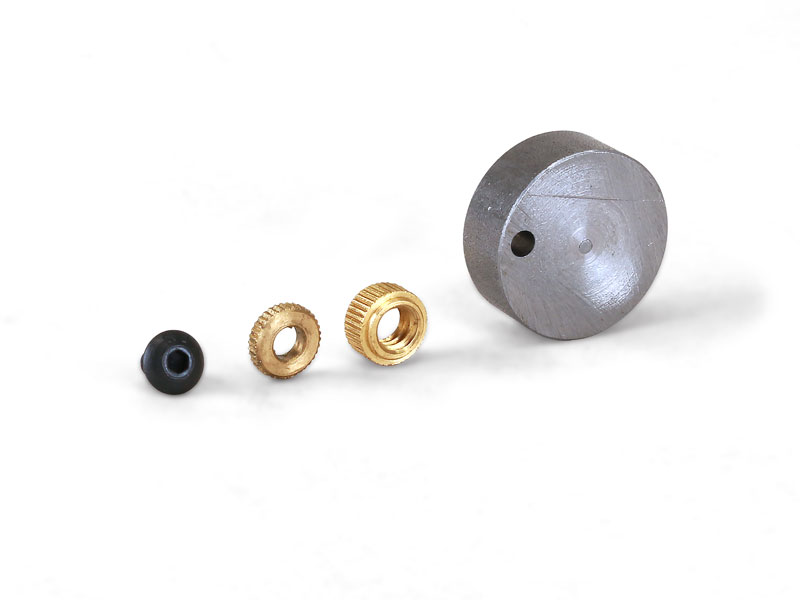

40920 Lathe Anti-Backlash Drill Guide
50130L Lathe Anti-Backlash Nut
50150 Anti-Backlash Lock (10/98)
50211 8-32 X 1/4″ Button Socket Screw
