Adjustable Bullnose Live Center


SKU: 1205 Category:

Product Description

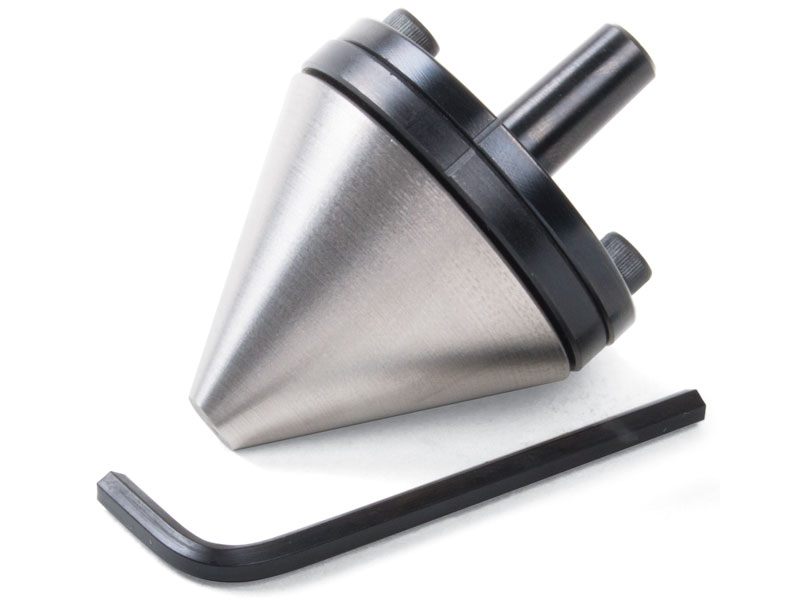

About the Adjustable Bullnose Live Center

The #1201 Adjustable Live Center is for use with solid parts with a drilled hole for centering. The #1205 Adjustable Bullnose Live Center is much larger and is designed to support parts with a large center hole or tubing. It accommodates a center hole from 3/8″ to 1-3/4″ diameter. The live center features two preloaded ball bearings inside.

A live center is held in the tailstock of a lathe and supports the un-chucked end of the work while allowing it to rotate easily on a bearing, as opposed to a standard “dead” center that does not rotate. If the point of the center is not in perfect alignment with the shaft, or if the center mark on the part is not dead-on, the part will “run out” (vibrate or wobble), making precise machining impossible.

The Purpose and Use of the Adjustable Tool Holders

The accuracy that is attainable by adjustable tailstock tools is governed by the amount of skilled effort you put forth. Only someone new to the machine trade would talk about “perfect” alignment. In the machine business, you talk tolerances even if you can’t measure an error because now the error has to be assumed from the tolerances of your method of checking.

These holders are simple to use. The holders are divided into two parts with flanges. These flanges are bolted together with two screws. The clearance holes for these screws allow the front to be adjusted in relation to the rear. The rear section has a witness mark (groove). This mark should always be located at the top so the holder is located the same way in the tailstock each time.

The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.


Always wear safety glasses when operating machine tools.

Download PDF 1201 Instructions

Instructions PDF Download

Shaft and Plate Material 12L14 Steel
Shaft and Plate Coating Black Oxide
Bullnose Center Case Hardened and Ground Steel
11822 Bullnose Live Center
11823 Bullnose Preload Nut
11824 Bullnose Shim Washer
10930 (2) 3/8″ Bearing
12040 Adjustable Tool Body
12151 Adjustable Bullnose Center Face
12060 (2) #8 Washer
67115 5-40 x 7/8″ SKT HD Cap Screw
12050 (2) 8-32 x 3/8″ SKT HD Cap Screw
12070 9/64″ Hex Key

Click the P/N below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
1205 Adjustable Bullnose Live Center 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
