Vertical Milling Table

Clear selection
SKU: N/A Category:

Product Description

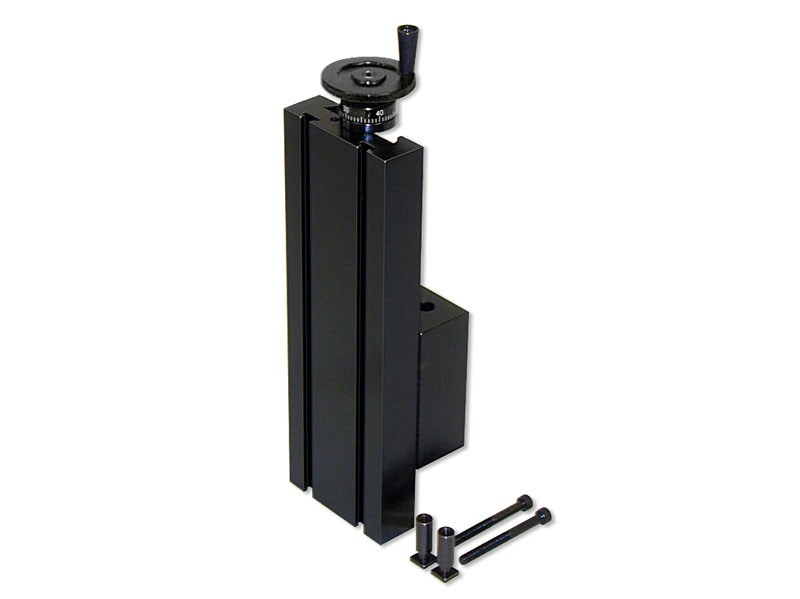

The 8″ vertical milling table is another method of milling on the Sherline lathe instead of using the vertical milling column. Parts to be machined are mounted to the vertical table. The vertical table is then mounted to the lathe crosslide table and the part is moved past a cutter held in the lathe spindle. This provides 3 axes of cutting similar to a mill, but in different directions and with shorter X and Y movements. For general milling, we recommend the vertical milling column as a better way to do milling on a lathe, but for specific setups, you may find this accessory useful. Many books written for the hobbyist show this type of setup on larger lathes. It can also make a useful fixture for multiple movements when used on the mill or as a fixture on other special-purpose machines.

Improved over the years

In its original form, the table was 4″ long. It was increased to 6″ long when Sherline lathes went to 6″ tables. Now, to further increase its utility, we have taken an 8″ table designed for the CNC vertical milling table and applied it to the manual version as well. In addition, the new table extrusion is 1/4″ thicker than the old one for added stiffness.  An anti-backlash adjustment is included as well as two T-nuts and hold-down screws.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

11830 Milling table base
40080 (41040 Metric) Handwheel (Inch/Metric)
40250 (2) Extended T-nut
40280 Handwheel Thrust
40520 (3) 10-32 x 3/16″ Cone Point Set Screw
40530 5-40 x 3/8″ Socket Head Cap Screw
40730 (2) 10-32 x 2″ Socket Head Cap Screw
40820 Gib Lock
40890 (41890 Metric) Slide Screw Insert (Inch/Metric)
40980 Crosslide Gib
50130 (51130 Metric) Anti-backlash lock, RH (Inch/Metric)
50150 Star gear backlash lock
50210 8-32 x 1/4″ pan head socket screw
65210 (65220 Metric) Slide Screw (Inch/Metric)
67036 8″ Crosslide table
