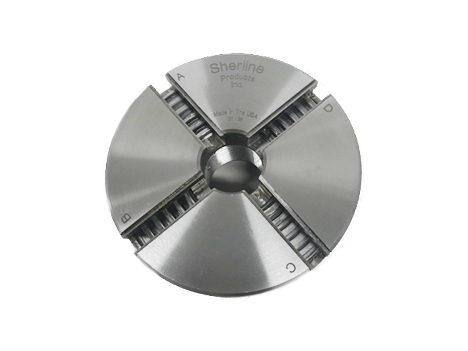

2.5″ 4-Jaw Self-Centering Chuck Body – Various Thread
This chuck will automatically center square or round stock. (The stock must be accurately shaped for all four jaws to grip.) It will also grip thin-wall tubing in four places rather than three, which spreads out the load and allows more grip without crushing the tubing.
Centering accuracy on self-centering chucks is to within a few thousandths of an inch. If perfect centering accuracy is required using an independent chuck is recommended.
|
|
Always wear safety glasses when operating machine tools. |
Download PDF 1075 Instructions
| Chuck Diameter | 2.5″ |
|---|---|
| Jaw Capacity | With jaws in normal position: 3/32″ (2mm) – 1-3/16″ (30mm)
With jaws in reverse position: 3/32″ (2mm) – 2-1/4″ (56mm) |
| Through Hole Diameter | .687″ (17mm) |
| Thread Size | 3/4-16 (other thread sizes available) |
| Chuck Body Material | 12L14 Steel |
| Chuck Jaws Material | 12L14 Case Hardened Steel |
Because chuck jaws are factory ground to precisely match each chuck body all replacement orders must be made by phone.
