3/8″ Front Side Multi-Tool Holder

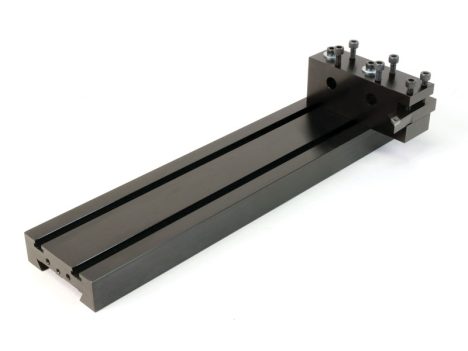

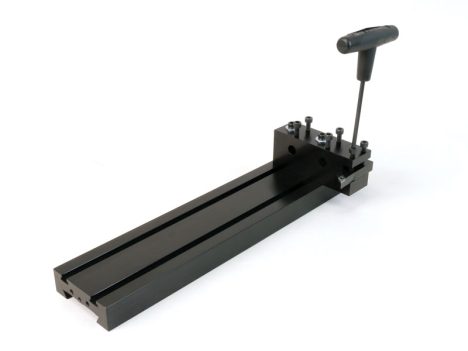

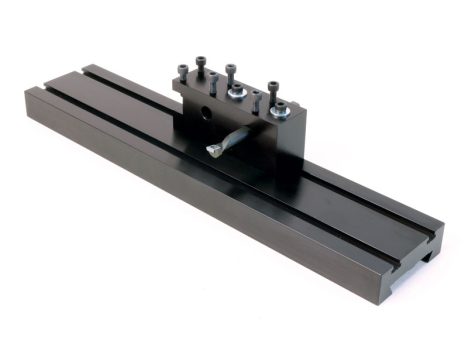

Tools not included, shown for reference only

SKU: 5932 Category:

Product Description

About the 3/8″ Front Side Multi-Tool Holder

The front side, multi-tool holder was designed to complement our four position, gang-tooling tool posts. It can be used in conjunction with the gang-tooling tool post, or on its own for our customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

Our front side, multi-tool holder offers a convenient and accurate way to hold up to two, round boring tools, and a slot for holding turning, grooving or threading tools.

We also offer a tool holder for customers who want to use ER16 collet holders with a 5/8″ shank.

For video instructions on “Indicating in Your Gang-Tooling Tool Post,” click on the Video tab above, or visit our Videos page.

Includes the following:

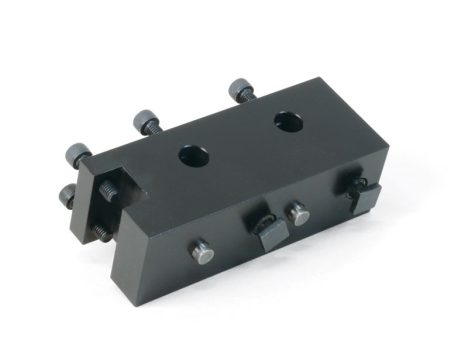

  • 3/8″ Front Side Multi-Tool Post Body
  • 10-32 x 1″ SHCS (2)
  • Extended Tool-Post T-Nut (2)
  • 10-32 x 3/4″ SHCS (6)
  • #10 Washer (2)
  • Steel Dowel Pin 1/4″ x 3/4″ (2)

Considerations Regarding this Tool Holder and Its Possible End Uses

There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list (click on the Instructions tab above to download the document).

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 5932 Instructions

Instructions PDF Download

Indicating in your Sherline Gang-Tooling Tool Post

Insert Holder Tool Post
Tool Post Body Material Aluminum
Body Coating Black Anodized
Body Dimensions (H x W X D) 1.5″ x 3.764″ x 1.1875″
59304 3/8″ Front Side Multi-Tool Post Body
40710 (2) 10-32 x 1 1/4″ SHC Screw
40250 (2) Extended Tool-Post T-Nut
40690 (6) 10-32 x 3/4″ SHC Screw
40660 (2) #10 Washer
59303 (2) Steel Dowel Pin 1/4″ x 3/4″
