Adjustable Right Angle Tailstock

Product Description

About the Adjustable Right Angle Tailstock

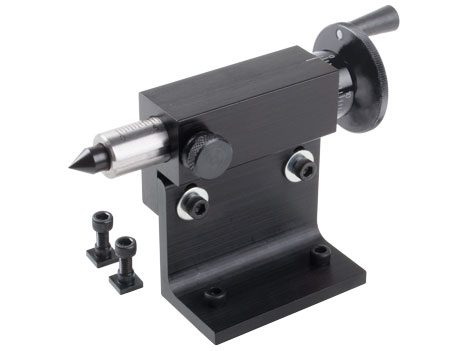

The adjustable right angle tailstock supports the end of long stock held in the rotary table when it is in the vertical position. This allows you to accurately rotate a part between centers for milling or drilling operations.

Because of “tolerance buildup” in the various parts used to place the rotary table in the 90° position, it is not possible to build a tailstock that would come out exactly on center each time. By using a split base design with slightly oversize holes, the height of the tailstock center is adjustable slightly. Once set to exactly match your rotary table/right angle attachment combination, it should not need to be readjusted. It will work with both the P/N 3701 Right Angle Attachment and the P/N 3750 Tilting Angle Table in the 90° position.

Here is a sample setup to cut a gear using the rotary table mounted to the right angle attachment. An adjustable right angle tailstock steadies the other end of the long shaft.
Here is a sample setup to cut a gear using the rotary table mounted to the right angle attachment. An adjustable right angle tailstock steadies the other end of the long shaft.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Instructions

Instructions PDF Download

Minimum Height 2.574″ (65.3796 mm)
Maximum Height 2.792″ (70.9168 mm)
Centerline from base to center 2.686″ (68.2244 mm)
Centerline of rotary table to tailstock 2.70″ (68.58 mm)
Height of tailstock base 2″ (50.8 mm)
30561 (2) 10-32 T-nuts
37230 Right Angle Tailstock Case
37240 Right Angle Tailstock Base
40080 X-axis Handwheel Assembly
40220 Feed Screw Assembly
40270 Tailstock Spindle .618-.619
40330 (2) 10-32 X 5/8″ SHC Screw
40390 No. 0 Morse Center Assembly
40500 10-24 X 3/4″ SHC Screw
40590 Washer 1/4″
40660 (2) #10 Washer 3/16
40860 Tailstock Locking Screw Grommet
40870 Tailstock Spindle Locking Screw Assembly
