4-Jaw Chuck Hold-Down Set

SKU: 3058 Category:

Product Description

About the 4-Jaw Chuck Hold-Down Set

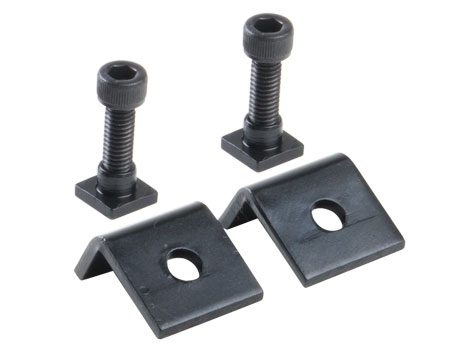

This set consists of two clamps complete with screws and T-nuts, and can be used to clamp the 4-jaw chuck to the milling table or lathe crosslide. The set provides a little more versatility than the chuck to T-slot adapter in that the chuck can be located almost anywhere on the table, and the part can be properly aligned with the axis of the machine. The clamps fit in a groove machined around the circumference of the 4-jaw chuck. They are the same as those furnished with the Sherline milling vise  and rotary table, so they are not needed if you already own either of these accessories.



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Instructions

Instructions PDF Download

Part No. Description Quantity
30561 10-32 T-Nut 2
35580 Hold-Down Clamp 2
40330 10-32 x 5/8″ SHCS 2
